industrial vibration sensor, 4 to 20 ma output, 0 to 2.0 in/sec pk, 3 to 1k hz, top exit, terminal block

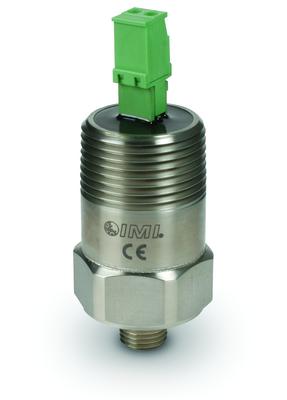

4-20 mA Output Velocity Sensor

Model 640B72

Add to Quote
  • CE
  • IP

Industrial vibration sensor, 4 to 20 mA output, 0 to 2.0 in/sec pk, 3 to 1k Hz, top exit, terminal block

  • Measurement Range: 0.0 to 2 in/sec pk (0.0 to 50.8 mm/s pk)
  • Output: 4-20 mA
  • Frequency Range: (±3dB)180 to 60000 cpm (3 to 1000 Hz)
  • Sensing Element: Ceramic
  • Weight: 19.5 oz (553 gm)

Specification Notes

[1] 1Hz = 60 cpm (cycles per minute).
[2] Current will fluctuate at frequencies below 5 Hz.
[3] Conversion Factor 1 in/sec = 0.0254 m/sec.
[4] Typical.
[5] See PCB Declaration of Conformance PS039 for details.

English: SI:
Performance
Measurement Range 0.0 to 2 in/sec pk 0.0 to 50.8 mm/s pk [3]
Output 4-20 mA 4-20 mA
Frequency Range (±3 dB) 180 to 60000 cpm 3 to 1000 Hz [1] [2]
Broadband Resolution 0.01 in/sec pk 0.26 mm/s pk [4]
Non-Linearity ±1 % ±1 %
Environmental
Temperature Range -40 to 185 °F -40 to 85 °C
Electrical
Excitation Voltage 12 to 30 VDC 12 to 30 VDC
Settling Time (within 2% of value) <15 sec <15 sec
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Hex 1.5 in 38.1 mm
Size - Height 3.7 in 94 mm
Weight 19.5 oz 553 gm
Mounting Thread 1/4 NPT No Metric Equivalent
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Electrical Connector Removable Screw Terminals Removable Screw Terminals
Electrical Connection Position Top Top
Electrical Connections (Tab 1) 4-20 mA Pos (+) 4-20 mA Pos (+)
Electrical Connections (Tab 2) 4-20 mA Neg (-) 4-20 mA Neg (-)
Screw Terminal Wire Size 12-24 AWG 3.0 - .2mm²

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
ICS-4 NIST-traceable single axis amplitude response cal from 0 to +10% freq. (for 4 to 20 mA sensors) 1

Optional Versions

(HT) High temperature, extends normal operation temperatures

English SI
Temperature Range -40 to 275 °F -40 to 125 °C

(RV) Buffered Analog Signal Output - 100 mV/g (±20%)

English SI
Electrical Connector Removable Screw Terminals
Electrical Connections 4-20 mA Pos (+)
Electrical Connections 4-20 mA Neg (-)
Electrical Connections Signal Output Pos
Electrical Connections Signal Output Neg

(TO) Temperature Output

English SI
Electrical Connections Vibration, 4-20 mA Pos.
Electrical Connections Vibration, 4-20 mA Neg.
Electrical Connections Temperature, 4-20 mA Pos.
Electrical Connections Temperature, 4-20 mA Neg.
Electrical Connector Removable Screw Terminals
Temperature Output Range -40 to +125 °C

(VO) Buffered Analog Signal Output 100 mV/in/sec (±20%)

English SI
Electrical Connector Terminal Block
Electrical Connections Vibration, 4-20 mA Pos.
Electrical Connections Vibration, 4-20 mA Neg.
Electrical Connections Signal Output Pos
Electrical Connections Signal Output Neg
