biaxial ring-style, industrial, ceramic shear icp® accel, 100 mv/g, 0.5 to 5k hz, side exit, 10-ft integral armor cable, biaxial single point iso 17025 accredited calibration

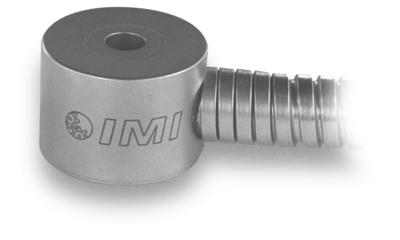

Low-cost Biaxial Industrial ICP® Accelerometer

Model 605B61

Add to Quote
  • CE
  • IP

Biaxial ring-style, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 5k Hz, side exit, 10-ft integral armor cable, biaxial single point ISO 17025 accredited calibration

  • Sensitivity: (±20%)100 mV/g (10.2 mV/(m/s²))
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 4.0 oz (113.3 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] Typical.
[4] 1/4-28 has no equivalent in S.I. units.
[5] Twisted shielded 4-conductor cable.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±3 dB) 30 to 300000 cpm 0.5 to 5000 Hz
Resonant Frequency 600 kcpm 10 kHz [3]
Broadband Resolution (1) 350 µg 3434 µm/sec2 [3]
Non-Linearity ±1 % ±1 % [2]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph See Graph
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.3 sec ≥0.3 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 8 µg/√Hz 78.5 (µm/sec2)/√Hz [3]
Spectral Noise (100 Hz) 5 µg/√Hz 49.1 (µm/sec2)/√Hz [3]
Spectral Noise (1 kHz) 4 µg/√Hz 39.2 (µm/sec2)/√Hz [3]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Diameter 1.38 in 35.1 mm
Size - Height 1.00 in 25.4 mm
Weight (without cable) 4.0 oz 113.3 gm
Mounting Thread 1/4-28 UNF No Metric Equivalent [4]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector Integral Armored Cable Integral Armored Cable
Electrical Connection Position Side Side
Electrical Connections (Red) X axis X axis
Electrical Connections (White) Z axis Z axis
Electrical Connections (Black) Ground Ground
Electrical Connections (Green) Not Used Not Used
Cable Length 10 ft 3.0 m
Cable Type Polyurethane Polyurethane [5]

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
081A68 Mounting bolt, captive, 1/4-28 x 0.875" long (for Series 604, 605 & 606) 1
ACS-2T Triaxial, one point @ 100 Hz, per axis amplitude response cal, NIST traceable 1

Optional Versions

(M) Metric Mount
Accessories:
Supplied M081A68 Captive Mounting Bolt 1
