biaxial ring-style, industrial, ceramic shear icp® accel, 100 mv/g, 0.5 to 5k hz, side exit, 3-pin conn., biaxial single point iso 17025 accredited calibration

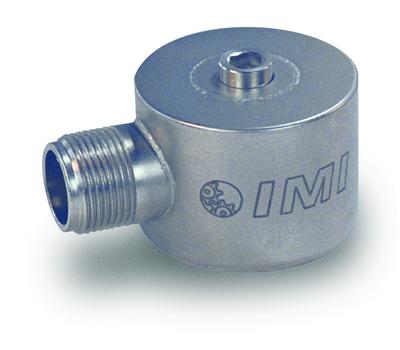

Low-cost Biaxial Industrial ICP® Accelerometer

Model 605B01

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Biaxial ring-style, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 5k Hz, side exit, 3-pin conn., biaxial single point ISO 17025 accredited calibration

  • Sensitivity: (±20%) 100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB)30 to 300000 cpm (.5 to 5000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 3.9 oz (110.6 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[4] Typical.
[5] 1/4-28 has no equivalent in S.I. units.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±3 dB) 30 to 300000 cpm .5 to 5000 Hz [3]
Resonant Frequency 600 kcpm 10 kHz [4]
Broadband Resolution (1) 350 µg 3434 µm/sec2 [4]
Non-Linearity ±1 % ±1 % [2]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [4]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.3 sec ≥0.3 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 8 µg/√Hz 78.5 (µm/sec2)/√Hz [4]
Spectral Noise (100 Hz) 5 µg/√Hz 49.1 (µm/sec2)/√Hz [4]
Spectral Noise (1 kHz) 4 µg/√Hz 39.2 (µm/sec2)/√Hz [4]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Diameter 1.38 in 34.9 mm
Size - Height 1.00 in 25.4 mm
Weight (without cable) 3.9 oz 110.6 gm
Mounting Thread 1/4-28 UNF Not Applicable [5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 3-Pin MIL-C-5015 3-Pin MIL-C-5015
Electrical Connection Position Side Side
Electrical Connections (Pin A) X axis X axis
Electrical Connections (Pin B) Z axis Z axis
Electrical Connections (Pin C) Ground Ground

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
081A68 Mounting bolt, captive, 1/4-28 x 0.875" long (for Series 604, 605 & 606) 1
ACS-2T Triaxial, one point @ 100 Hz, per axis amplitude response cal, NIST traceable 1

Optional Versions

(M) Metric Mount
Accessories:
Supplied M081A68 Captive Mounting Bolt 1
