general purpose, industrial, ceramic shear icp® accel., 50 mv/g, top exit, 2-pin conn., single point iso 17025 accredited calibration

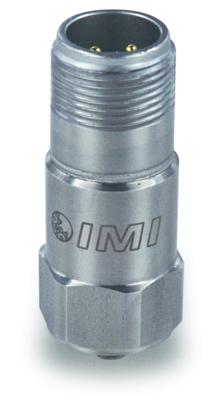

Low-cost Industrial ICP® Accelerometer

Model 603C05

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

General purpose, industrial, ceramic shear ICP® accel., 50 mV/g, top exit, 2-pin conn., single point ISO 17025 accredited calibration

  • Sensitivity: (±20%)50 mV/g (5.1 mV/(m/s²))
  • Frequency Range: (±3dB)30 to 600000 cpm (0.5 to 10000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±100 g (±981 m/s²)
  • Weight: 1.8 oz (51 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[4] Typical.
[5] 1/4-28 has no equivalent in S.I. units.
[6] See PCB Declaration of Conformance PS023 or PS060 for details.

English: SI:
Performance
Sensitivity (±20 %) 50 mV/g 5.1 mV/(m/s²) [1]
Measurement Range ±100 g ±981 m/s²
Frequency Range (±3 dB) 30 to 600000 cpm 0.5 to 10000 Hz [3]
Resonant Frequency 1500 kcpm 25 kHz [4]
Broadband Resolution (1) 750 µg 7358 µm/s² [4]
Non-Linearity ±1 % ±1 % [2]
Transverse Sensitivity ≤7 % ≤7 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [4]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.4 sec ≥0.4 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 18 µg/√Hz 176 (µm/s²)/√Hz [4]
Spectral Noise (100 Hz) 10 µg/√Hz 98.1 (µm/s²)/√Hz [4]
Spectral Noise (1 kHz) 7 µg/√Hz 68.7 (µm/s²)/√Hz [4]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Hex 11/16 in 18 mm
Size - Height 1.65 in 42.2 mm
Weight 1.8 oz 51 gm
Mounting Thread 1/4-28 Female No Metric Equivalent [5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Top Top

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
081A40 Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip 1
ICS-2 Calibration of industrial accel., single-point, 100 Hz reference sensitivity 1

Optional Versions

(TO) Temperature Output

English SI
Temperature Output Range +36 to +250 °F +2 to +121 °C
Temperature Scale Factor 5.56 mV/°F + 32 +10 mV/°C
Electrical Connector 3-Pin-MIL-C-5015 3-Pin-MIL-C-5015
Electrical Connections Acceleration Output
Electrical Connections Temperature Output
Electrical Connections Ground
Size - Height 1.86 in 47.2
Weight 2.0 oz 56.7
