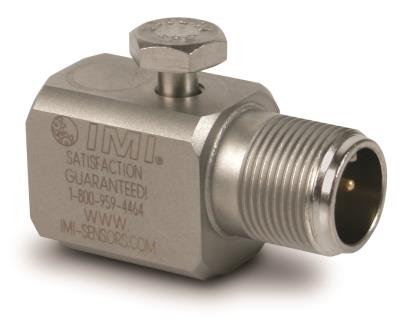

Industrial ICP® Accelerometer

Model 602M138

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
1 Call for Lead Time
  • CE
  • IP

Low profile, industrial, ceramic shear ICP® accel., 100 mV/g, 0.5 to 8000 Hz, side exit, 2-pin connector, single point ISO 17025 accredited calibration, for use with Echo® system

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB)24 to 480000 cpm (0.4 to 8000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±80 g (±785 m/s²)
  • Weight: 2.61 oz (74.0 gm)

Specification Notes


[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[4] Typical.
[5] 1/4-28 has no equivalent in S.I. units.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±80 g ±785 m/s²
Frequency Range (±3 dB) 24 to 480000 cpm 0.4 to 8000 Hz [3]
Resonant Frequency 1500 kcpm 25 kHz [4]
Broadband Resolution 550 µg 5395 µm/sec2 [4]
Non-Linearity ±1 % ±1 % [2]
Transverse Sensitivity ≤7 % ≤7 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [4]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.4 sec ≥0.4 sec
Excitation Voltage 24 to 28 VDC 24 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 10 to 14 VDC 10 to 14 VDC
Spectral Noise (10 Hz) 10 µg/√Hz 98.1 (µm/sec2)/√Hz [4]
Spectral Noise (100 Hz) 7 µg/√Hz 68.7 (µm/sec2)/√Hz [4]
Spectral Noise (1 kHz) 7 µg/√Hz 68.7 (µm/sec2)/√Hz [4]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Length 1.65 in 41.9 mm
Size - Width 0.74 in 18.8 mm
Size - Height 0.845 in 21.5 mm
Weight 2.61 oz 74.0 gm
Mounting Thread 1/4-28 Male No Metric Equivalent [5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
081B97 CAPTIVE MOUNTING BOLT 316SS- 7/16 HEX, 1/4-28 UNF, 1 INCH LENGTH 1
