universal ac power adapter, 100-240 vac/ 50-60 hz input, 33 vdc output, 5-pin din (for models 482c05 and 482c15), line cord

Power Supply

Model 488B04

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-2 is 3 Wks.
  • CE
  • IP

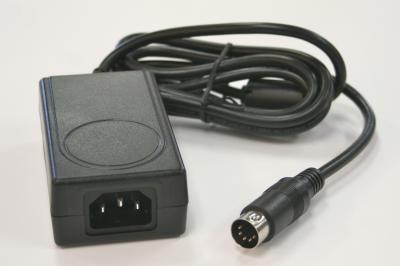

Universal AC power adapter, 100-240 VAC/ 50-60 Hz input, 33 VDC output, 5-pin DIN (for models 482C05 and 482C15), line cord

  • Output Voltage: 32 - 38 VDC
  • Output Current: 0.54 Amps

Specification Notes

[1] See PCB Declaration of Conformance PS024 for details. A low impendance connection from case to earth ground is required to maintain CE compliance.

English: SI:
Environmental
Temperature Range (Operating) 32 to 104 °F 0 to 40 °C
Humidity Range (Non-Condensing) 0 to 95 % 0 to 95 %
Electrical
Output Voltage 32 - 38 VDC 32 - 38 VDC
Output Current 0.54 Amps 0.54 Amps
AC Power (50 to 60 Hz) 100 to 240 VAC 100 to 240 VAC
AC Power (50 to 60 Hz) 0.6 Amps 0.6 Amps
AC Ripple (Peak to Peak) <350 mV <350 mV
Physical
Electrical Connector (AC Power Input) IEC 320 IEC 320
Electrical Connector (Output DC) DIN 5 Pin (Male) DIN 5 Pin (Male)
Size - Height 1.3 in 33 mm
Size - Width 2.13 in 54.1 mm
Size - Depth 3.76 in 955 mm
Weight 1.25 lb 0.57 kg

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
017AXX 1
