2-channel, usb-powered, icp® signal conditioner, unity gain

USB, Dual-channel, ICP® Sensor Signal Conditioner

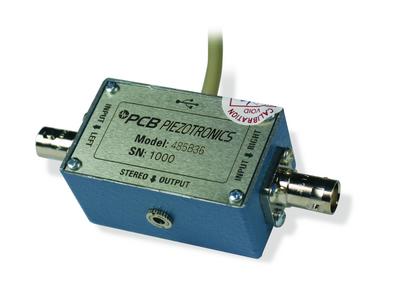

Model 485B36

  • IP

2-channel, USB-powered, ICP® signal conditioner, unity gain

  • Channels: 2

Specification Notes


[1] Un-buffered output, read out device input impedance affects discharge time constant and low frequency response of unit.
[2] Typical.

English: SI:
Performance
Channels 2 2
Input Range ±5 V ±5 V
Frequency Range (±2 %) 2 to 50000 Hz 2 to 50000 Hz [1]
Frequency Range (±5 %) 1 to 50000 Hz 1 to 50000 Hz [1]
Non-Linearity ±1 % ±1 %
Voltage Gain (±0.5 %) 1:1 1:1
Phase Response (±5 °) 5 to 50000 Hz 5 to 50000 Hz [1]
Phase Response (±10 °) 1 to 50000 Hz 1 to 50000 Hz [1]
Environmental
Temperature Range (Operating) +32 to +122 °F 0 to +50 °C
Electrical
Excitation Voltage (To Sensor) 18.5 to 20.5 VDC 18.5 to 20.5 VDC
Constant Current Excitation (To Sensor) 3.8 to 5.8 mA 3.8 to 5.8 mA
DC Offset <80 mV <80 mV
Spectral Noise (1 Hz) 150 nV/√Hz 150 nV/√Hz [2]
Spectral Noise (10 Hz) 50 nV/√Hz 50 nV/√Hz [2]
Spectral Noise (100 Hz) 35 nV/√Hz 35 nV/√Hz [2]
Spectral Noise (1000 Hz) 270 nV/√Hz 270 nV/√Hz [2]
Spectral Noise (10000 Hz) 210 nV/√Hz 210 nV/√Hz [2]
Broadband Electrical Noise (1 to 10000 Hz) 6 µV/rms 6 µV/rms [2]
Power Required DC Power DC Power
Total Harmonic Distortion (at 100 Hz with full-scale input) 0.75 % 0.75 % [2]
DC Power 5 VDC 5 VDC
Crosstalk <-92 dB <-92 dB
Current Consumption 69 mA 69 mA [2]
Output Impedance (Parallel) 1.1 MOhm 1.1 MOhm [2]
Output Impedance (Series) 2.2 µF 2.2 µF [2]
Physical
Electrical Connector (Input, sensor) BNC Jack BNC Jack
Electrical Connector (Output, scope) 3.5 mm Stereo Jack 3.5 mm Stereo Jack
Electrical Connector (External Power, DC) Integral Cable with USB Plug Termination Integral Cable with USB Plug Termination
Size - Depth 1.33 in 3.4 cm
Size - Height 1.18 in 3.0 cm
Size - Width 3.67 in 9.3 cm
Weight 2.5 oz 70 gm [2]

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
009M130 Output cable, 3.5mm stereo plug to 3.5mm stereo plug, 1-ft 1
009M131 Output cable, 3.5mm stereo plug to 2 phono RCA plugs, with BNC adaptors, 3-ft 1
