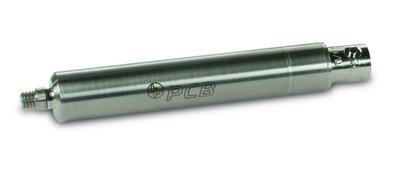

In-Line Charge Converter

Model 422E11

Add to Quote
  • CE
  • IP

In-line charge converter, 100 mV/pC, +/-2.5V output, -5% frequency 5 Hz

  • Sensitivity: (±5%)100 mV/pC
  • Output Voltage: ±2.5 Vpk
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Housing Material: Stainless Steel

Specification Notes

[1] Above stated frequency, the amplifier becomes slew rate limited.
[2] Not to be used with low values of source resistance such as charge mode sensors at elevated temperatures or contaminated sensor cables (preventing low frequency peaking and/or output bias problems).
[3] Tested using voltage source and input capacitor equal to the feedback capacitor, to simulate a charge output sensor.
[4] See PCB Declaration of Conformance PS024 for details.

English: SI:
Performance
Sensitivity (±5 %) (Charge Conversion) 100 mV/pC 100 mV/pC
Overrange ±3 V ±3 V
Low Frequency Response (-5 %) 5 Hz 5 Hz
High Frequency Response (2.2 mA) 60 kHz 60 kHz [1]
High Frequency Response (4 mA) 90 kHz 90 kHz [1]
High Frequency Response (20 mA) 110 kHz 110 kHz [1]
Non-Linearity ≤1.0 % FS ≤1.0 % FS
Environmental
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response (Sensitivity Deviation) <2 % <2 %
Maximum Shock 1000 g pk 9810 m/s² pk
Electrical
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2.2 to 20 mA 2.2 to 20 mA
Output Voltage (at specified measurement range) ±2.5 Vpk ±2.5 Vpk
Output Impedance <20 Ohm <20 Ohm
Output Bias Voltage 12.75 to 14.25 VDC 12.75 to 14.25 VDC
Output Polarity Inverted Inverted
Maximum Input Voltage 30 V 30 V
Broadband Electrical Noise (1 to 10000 Hz) 60 µV -84 dB [3]
Spectral Noise (1 Hz) 44 µV/√Hz -87 dB [3]
Spectral Noise (10 Hz) 8.0 µV/√Hz -102 dB [3]
Spectral Noise (100 Hz) 1.0 µV/√Hz -120 dB [3]
Spectral Noise (1 kHz) 0.2 µV/√Hz -134 dB [3]
Spectral Noise (10 kHz) 0.1 µV/√Hz -140 dB [3]
Discharge Time Constant 0.1 sec 0.1 sec
Resistance (Minimum required at input) 200000000 Ohm 200000000 Ohm [2]
Source Capacitance Loading 0.005 %/pF 0.005 %/pF
Physical
Housing Material Stainless Steel Stainless Steel
Sealing Welded Welded
Electrical Connector (Input) 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connector (Output) BNC Jack BNC Jack
Size - Diameter 0.52 in 13 mm
Size - Length 3.4 in 86 mm
Weight 1.15 oz 32.7 gm

* All specifications are at room temperature unless otherwise specified.

Optional Versions

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Temperature Range -40 to +185 °F -40 to +85 °C
Output Bias Voltage 13.35 to 14.85 VDC
