torque sensor, rotary transformer, 6k in-lb fs, flanges & splines per and 10262 & and 20002

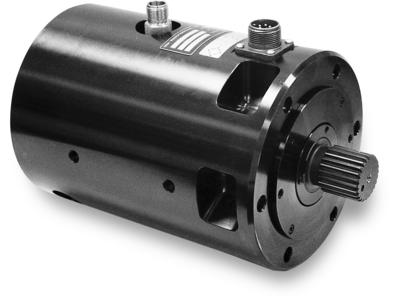

Rotary Transformer Torque Sensor

Model 4115K-12A

Add to Quote
  • CE
  • IP

Torque sensor, rotary transformer, 6k in-lb FS, flanges & splines per AND 10262 & AND 20002

Speed sensor sold separately.


Cable: 8310-06-xxA and 8310-03-xxA

    Specification Notes

    [1] Nominal.
    [2] FS - Full Scale.
    [3] Over compensated operating temperature range.
    [1] Nominal.
    [2] FS - Full Scale.
    [4] Recommended 10 VAC RMS.
    [5] See PCB Declaration of Conformance PS062 for details.

    English: SI:
    Performance
    Measurement Range (Full Scale Capacity) 6000 in-lb 675 Nm [1]
    Sensitivity (±15 %) (output at rated capacity) 2.5 mV/V 2.5 mV/V [1] [2]
    Non-Linearity ≤0.05 % FS ≤0.05 % FS [2]
    Hysteresis ≤0.05 % FS ≤0.05 % FS [2]
    Non-Repeatability ≤0.03 % FS ≤0.03 % FS [2]
    Environmental
    Overload Limit 15000 in-lb 1700 Nm
    Temperature Range (Operating) -65 to 225 °F -54 to 107 °C
    Temperature Range (Compensated) +70 to +170 °F +21 to 77 °C
    Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0036 %Reading/°C [3]
    Temperature Effect on Zero Balance (Maximum) ±0.002 %FS/°F ±0.0036 %FS/°C [2] [3]
    Electrical
    Bridge Resistance 350 Ohm 350 Ohm [1]
    Excitation Frequency 3.28 kHz 3.28 kHz
    Excitation Voltage 2 to 10 VAC rms 2 to 10 VAC rms [4]
    Bridge Current (at 5 VAC) 50 mA 50 mA
    Insulation Resistance >5000000 kohm >5000000 kohm
    Zero Balance ≤2 % FS ≤2 % FS [2]
    Physical
    Size - Shaft Length 9.56 in 242.82 mm
    Size - Housing Length 8.25 in 209.55 mm
    Size - Housing Height 6.00 in 152.40 mm
    Weight 47 lb 21.3 kg
    Mounting Splined Splined
    Sensing Element Strain Gage Strain Gage
    Housing Material Black Oxided Steel Black Oxided Steel
    Shaft Material Steel Steel
    Electrical Connector MS3102A-14S-5P MS3102A-14S-5P
    Electrical Connection Position Side Side
    Torsional Stiffness 500000 in-lb/radian 56500 N-m/radian
    Rotating Inertia 0.0062 in-lb sec2 0.0007 N-m sec2
    Maximum Speed 15000 RPM 15000 RPM

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    Supplied
    180-019A Mating conn., 5-socket (F) (for Series 3100, 4100 & 4200) 1
    8113-105A Relay activated precision shunt calibration module 1
