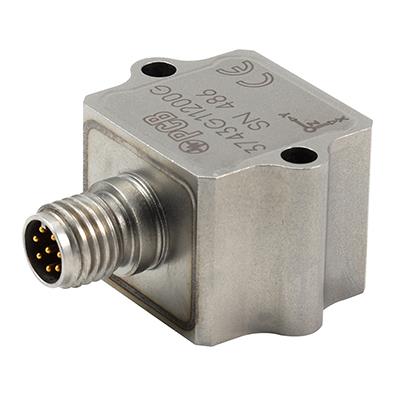

TRIAXIAL DC RESPONSE ACCELEROMETER

Model 3743G11100G

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Accelerometer, VC, 100g, triaxial, differential, screw mount, integral M8 connector

  • Sensitivity: (±3%)27 mV/g (2.75 mV/(m/s²))
  • Measurement Range: ±100 g pk (±980.7 m/s² pk)
  • Electrical Connector: 8-Pin
  • Weight: 0.92 oz (26 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Measured at 100 Hz, 10 grms.
[2] Typical.
[4] -65 to +250 °F, ref. 75 °F (-54 to +121 °C, ref. 24 °C)
[5] FSO= Full Scale Output over the Measurement Range
[2] Typical.
[6] Offset tolerance is based on 10ft of 528 test cable.
[2] Typical.
[7] See PCB Declaration of Conformance PS027 for details.

English: SI:
Performance
Sensitivity (±3 %) 27 mV/g 2.75 mV/(m/s²) [3]
Measurement Range ±100 g pk ±980.7 m/s² pk
Frequency Range (±5 %) 0 to 1500 Hz 0 to 1500 Hz
Frequency Range (±10 %) 0 to 2500 Hz 0 to 2500 Hz
Resonant Frequency 8.5 kHz 8.5 kHz [2]
Phase Response (100 Hz) <10 ° <10 °
Non-Linearity (Typical) 0.3 % 0.3 % [1]
Non-Linearity (Max) 1 % 1 % [1]
Broadband Resolution (0.5) 3 mg rms 0.03 m/s² rms [2]
Transverse Sensitivity (Typical) 1 % 1 %
Transverse Sensitivity (Max) 3 % 3 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49,050 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54.0 to +121 °C
Temperature Range (Storage) -65 to +250 °F -54.0 to +121 °C
Temperature Coefficient of Sensitivity ±1 % ±1 % [2] [4]
Zero g Offset Temperature Coefficient ±1 % FSO ±1 % FSO [2] [4] [5]
Base Strain Sensitivity .001 g/µε .01 (m/s²)/µε [2]
Magnetic Sensitivity 40 µg/gauss 3.9 (m/s²)/Tesla [2]
Electrical
Excitation Voltage 5 to 32 VDC 5 to 32 VDC
Current Consumption ≤15 mA ≤15 mA
Output Impedance ≤120 Ohm ≤120 Ohm
Offset Voltage ±20 mVDC ±20 mVDC [6]
Common Mode Voltage (+/-0.1 VDC) 1.65 VDC 1.65 VDC
Spectral Noise (1 Hz) 300 2943 (µm/s²)/√Hz [2]
Spectral Noise (10 Hz) 300 2943 (µm/s²)/√Hz [2]
Spectral Noise (100 Hz) 300 2943 (µm/s²)/√Hz [2]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Size - Length 0.76 in 19.3 mm
Size - Width 1.03 in 26.2 mm
Size - Height 0.66 in 16.8 mm
Weight 0.92 oz 26 gm [2]
Electrical Connector 8-Pin 8-Pin
Electrical Connection Position Side Side
Mounting Thread Through Hole Through Hole
