miniature (2 gm), ring-style, charge output accel., 5 pc/g, 10k hz, 5-44 side conn.

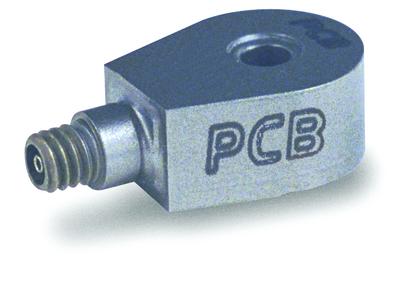

Charge Output Accelerometer

Model 357B06

Add to Quote
  • CE
  • IP

Miniature (2 gm), ring-style, charge output accel., 5 pC/g, 10k Hz, 5-44 side conn.

  • Sensitivity: (±20%)5 pC/g (0.51 pC/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Frequency Range: (+5%)10 kHz
  • Weight: 0.08 oz (2.3 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Transverse sensitivity is typically ≤ 3%.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[5] Typical.
[6] Only when using off ground washer.
[4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[5] Typical.
[7] See PCB Declaration of Conformance PS081 for details.

English: SI:
Performance
Sensitivity (±20 %) 5 pC/g 0.51 pC/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (+5 %) 10 kHz 10 kHz [3]
Frequency Range (+10 %) 15 kHz 15 kHz [3] [4]
Frequency Range (+3 dB) 25 kHz 25 kHz [3] [4]
Resonant Frequency ≥50 kHz ≥50 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [2]
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range -65 to +500 °F -54 to +260 °C
Temperature Response See Graph %/°F See Graph %/°F [5]
Base Strain Sensitivity ≤0.05 g/µε ≤0.5 (m/s²)/µε [5]
Electrical
Capacitance 700 pF 700 pF [5]
Insulation Resistance (at 70° F [21°C]) >100000000000 Ohm >100000000000 Ohm
Output Polarity Negative Negative
Electrical Isolation (Base) >100000000 Ohm >100000000 Ohm [6] [4]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Welded Hermetic Welded Hermetic
Size - Height 0.23 in 5.8 mm
Size - Length .68 in 17.3 mm
Size - Width 0.38 in 9.6 mm
Weight 0.08 oz 2.3 gm [5]
Electrical Connector 5-44 Coaxial 5-44 Coaxial
Electrical Connection Position Side Side
Mounting Through Hole Through Hole

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
039A20 Allen wrench (for use with 2-56 thd cap screws) 1
081B36 Off ground socket head cap screw assembly, 2-56 UNC-2A thd., 0.375 length, alloy steel 1

Optional Versions

(M) Metric Mount
Accessories:
Supplied M081B36 INS CAP SCREW M2X0.4 X 3/8 1
Supplied M039A20 Allen wrench, 1.5mm hex 1
