charge output accel., 100 pc/g, 150g, 3khz, 10-32 top conn., high temp. +550 f (+288 c), radiation hardened

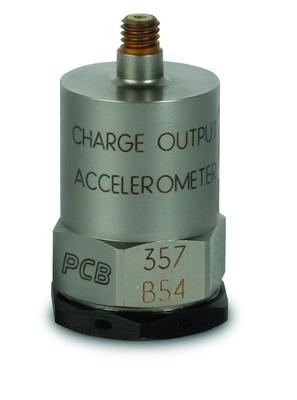

Charge Output Accelerometer

Model 357B54

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Charge output accel., 100 pC/g, 150g, 3kHz, 10-32 top conn., high temp. +550 F (+288 C), Radiation Hardened

Replaces Legacy Model Endevco 2273AM20
  • Sensitivity: (±15%)100 pC/g (10.2 pC/(m/s²))
  • Measurement Range: ±150 g pk (±1470 m/s² pk)
  • Frequency Range: (+5%)3000 Hz
  • Weight: 1.80 oz (51 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS160 for details.

English: SI:
Performance
Sensitivity (±15 %) 100 pC/g 10.2 pC/(m/s²)
Measurement Range ±150 g pk ±1470 m/s² pk
Frequency Range (+5 %) 3000 Hz 3000 Hz [2]
Frequency Range (+10 %) 3500 Hz 3500 Hz [2]
Frequency Range (+3 dB) 5500 Hz 5500 Hz [2]
Resonant Frequency ≥12 kHz ≥12 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±2000 g pk ±19600 m/s² pk
Temperature Range -95 to +550 °F -71 to +288 °C
Temperature Response See Graph %/°F See Graph %/°F [3]
Base Strain Sensitivity 0.0002 g/µε 0.002 (m/s²)/µε [3]
Radiation Exposure Limit (Integrated Gamma Flux) ≤100000000 rad ≤100000000 rad
Radiation Exposure Limit (Integrated Neutron Flux) ≤10000000000 N/cm² ≤10000000000 N/cm²
Electrical
Capacitance 930 pF 930 pF [3]
Insulation Resistance (at 550°F) ≥100000000 Ohm ≥100000000 Ohm [3]
Insulation Resistance (at 70° F [21°C]) ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity Negative Negative
Electrical Isolation (Base) ≥100000000 Ohm ≥100000000 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Hex 3/4 in 3/4 in
Size - Height 1.43 in 36.3 mm
Weight 1.80 oz 51 gm [3]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Top Top
Mounting Thread 10-32 Female 10-32 Female

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1
