high temp., ceramic shear, charge output accel., 30 pc/g, 6k hz, 10-32 top conn. (-95f to +500f)

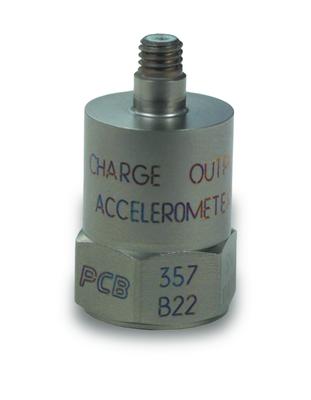

Accelerometer, Charge Output

Model 357B22

Add to Quote
  • CE
  • IP

High temp., ceramic shear, charge output accel., 30 pC/g, 6k Hz, 10-32 top conn. (-95F to +500F)

  • Sensitivity: (±15%)30 pC/g (3.1 pC/(m/s²))
  • Measurement Range: ±1500 g pk (±14700 m/s² pk)
  • Frequency Range: (+5%)6000 Hz
  • Weight: 0.73 oz (21 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS160 for details.

English: SI:
Performance
Sensitivity (±15 %) 30 pC/g 3.1 pC/(m/s²)
Measurement Range ±1500 g pk ±14700 m/s² pk
Frequency Range (+5 %) 6000 Hz 6000 Hz [2]
Frequency Range (+10 %) 7500 Hz 7500 Hz [2]
Frequency Range (+3 dB) 8500 Hz 8500 Hz [2]
Resonant Frequency ≥23 kHz ≥23 kHz
Non-Linearity (600 g, 5890 m/s²) ≤1 % ≤1 % [1]
Non-Linearity ≤3 % ≤3 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±6000 g pk ±58860 m/s² pk
Temperature Range -95 to +500 °F -71 to +260 °C
Temperature Response See Graph %/°F See Graph %/°F [3]
Base Strain Sensitivity 0.0006 g/µε 0.006 (m/s²)/µε [3]
Electrical
Capacitance 930 pF 930 pF [3]
Insulation Resistance (at 500°F) ≥100000000 Ohm ≥100000000 Ohm [3]
Insulation Resistance (at 70° F [21°C]) ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity Negative Negative
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Hex 5/8 in 5/8 in
Size - Height 1.16 in 29.3 mm
Weight 0.73 oz 21 gm [3]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Top Top
Mounting Thread 10-32 Female 10-32 Female

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1

Optional Versions

(J) Ground Isolated

English SI
Frequency Range 4000 Hz
Size - Height 1.21 in 30.6 mm
Electrical Isolation 100000000 Ohm
Frequency Range 5000 Hz
Resonant Frequency ≥17 kHz
Size - Hex 0.625 in 15.9 mm

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Integral Cable
Electrical Connection Position Top
