uht-12™, charge output accel, high temp to +1200 f, 1 pc/g, 1000 g, 0.46 inch cube, stud mount, with screw tabs, to 10k hz, case isolated

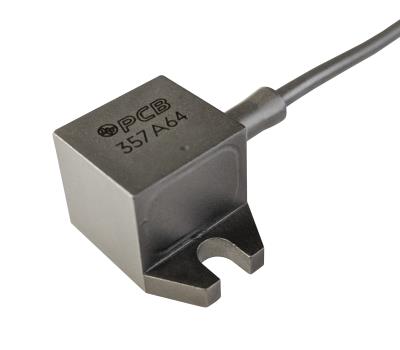

Charge Output Accelerometer

Model 357A64

  • CE
  • IP

UHT-12™, Charge output accel, high temp to +1200 F, 1 pC/g, 1000 g, 0.46 inch cube, stud mount, with screw tabs, to 10k Hz, case isolated

  • Sensitivity: (±10%)1.15 pC/g (.117 pC/(m/s²))
  • Measurement Range: ±1000 g pk (±9800 m/s² pk)
  • Frequency Range: (±10%)10 kHz
  • Cable Termination: 10-32 Coaxial Jack
  • Weight: .54 oz (15 gm)

Additional configurations:

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] For cable lengths less than 1.5 Ft [,46m] insulation resistance is only tested to 900F [482C].
[2] Typical.
[4] Additional cable length will add approx. 100pF/ft.
[3] For cable lengths less than 1.5 Ft [,46m] insulation resistance is only tested to 900F [482C].
[2] Typical.
[3] For cable lengths less than 1.5 Ft [,46m] insulation resistance is only tested to 900F [482C].
[5] See PCB Declaration of Conformance PS081 for details.

English: SI:
Performance
Sensitivity (±10 %) 1.15 pC/g .117 pC/(m/s²)
Measurement Range ±1000 g pk ±9800 m/s² pk
Frequency Range (±10 %) 10 kHz 10 kHz
Resonant Frequency 45 kHz 45 kHz [2]
Non-Linearity (per full scale range) 1 % 1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±2000 g pk ±19600 m/s² pk
Temperature Range (Operating) -67 to 1200 °F -55 to 649 °C [3]
Temperature Range (Survivable Limit) -67 to 1400 °F -55 to 760 °C
Temperature Range (Cable Termination) -67 to 900 °F -55 to 482 °C
Temperature Response See Graph See Graph [2]
Radiation Exposure Limit (Integrated Neutron Flux) 1E10 N/cm² 1E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1E8 rad 1E8 rad
Electrical
Capacitance 1000 pF 1000 pF [2] [4]
Insulation Resistance (@ 1200°F[649°C]) ≥30 kohm ≥30 kohm [3]
Insulation Resistance (@ 70° F [21°C]) ≥1 GOhm ≥1 GOhm
Electrical Isolation Signal isolated from case Signal isolated from case
Physical
Sensing Geometry Shear Shear
Housing Material Nickel Alloy Nickel Alloy
Sealing (Sensor Housing) Hermetic Hermetic
Sealing (Connector) Welded Hermetic Welded Hermetic
Size - Height .47 in 11.9 mm
Size - Length .87 in 22.1 mm
Size - Width .51 in 13 mm
Weight (without cable) .54 oz 15 gm [2]
Electrical Connector Integral Hardline Cable Integral Hardline Cable
Cable Length 10 ft 3.05 m [3]
Cable Type MI Hardline Cable MI Hardline Cable
Cable Termination 10-32 Coaxial Jack 10-32 Coaxial Jack
Mounting Thread 6-32 Male 6-32 Male
Mounting Through Holes (2) Through Holes (2)

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
64287-01 1
ACS-44 Extended Frequency Response Calibration to +10% point (requires ACS-1) 1
68978-01 2
