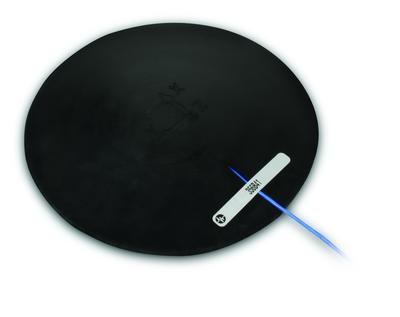

Triax ICP® Seat Pad Accelerometer per ISO 10326-1

Model 356B41

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Triaxial ICP® seat pad accel., 100 mV/g, 0.5 to 1000 Hz, 5-ft integral cable, conforms to ISO 10326-1

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±10 g pk (±98 m/s² pk)
  • Electrical Connector: Integral Cable

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Standard calibration to 100 Hz with sensor in mounting pad. Special calibration above 100 Hz available with sensor outside mounting pad.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±10 g pk ±98 m/s² pk
Frequency Range (±5 %) 0.5 to 1000 Hz 0.5 to 1000 Hz [3]
Resonant Frequency ≥27 kHz ≥27 kHz
Broadband Resolution (1) 0.0002 g rms 0.002 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±2000 g pk ±19620 m/s² pk
Temperature Range -10 to 122 °F -23 to 50 °C
Temperature Response <0.10 %/°F <0.17 %/°C [2]
Electrical
Excitation Voltage 6.5 to 30 VDC 6.5 to 30 VDC
Constant Current Excitation 0.3 to 10 mA 0.3 to 10 mA
Output Impedance ≤500 Ohm ≤500 Ohm
Output Bias Voltage 2.8 to 4.5 VDC 2.8 to 4.5 VDC
Discharge Time Constant 1 to 3 sec 1 to 3 sec
Settling Time (within 10% of bias) <20 sec <20 sec
Spectral Noise (1 Hz) 50 µg/√Hz 490 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 10 µg/√Hz 98 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 4 µg/√Hz 39 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 2 µg/√Hz 20 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Diameter 7.87 in 200 mm
Size - Width 0.472 in 12 mm
Weight 9.6 oz 272 gm [2]
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Termination 1/4-28 4-Pin Jack 1/4-28 4-Pin Jack
Cable Length 5 ft 1.5 m
Cable Type 010 4-cond Shielded 010 4-cond Shielded
Mounting Thread 5-40 Female 5-40 Female

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
ACS-17 Seatpad triaxial amplitude response cal from 0.5 to 100 Hz (for Models 356A40, 356B40, & 356B41) 1
010G05 4-conductor, shielded, FEP cable, 5-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z) 1
081A90 Mounting stud, 10-32 to 5-40 1
