triaxial, miniature (4 gm), ceramic shear icp® accel., 10 mv/g, built-in filter, 5-ft attached cable to 4-socket 1/4-28 plug, 5-ft breakout cable to (3) bnc plugs

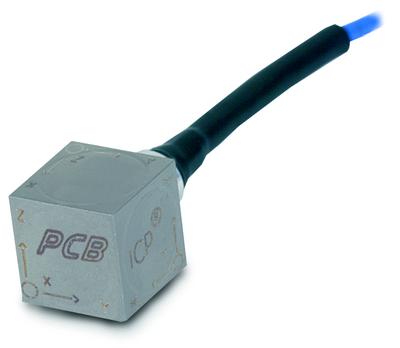

Accelerometer, ICP®, Triaxial

Model 356A61

  • CE
  • IP

Triaxial, miniature (4 gm), ceramic shear ICP® accel., 10 mV/g, built-in filter, 5-ft attached cable to 4-socket 1/4-28 plug, 5-ft breakout cable to (3) BNC plugs

  • Electrical Filter Corner Frequency: >15 kHz
  • Sensitivity: (±15%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Frequency Range: (-5%)2 to 4000 Hz
  • Electrical Connector: Integral Cable

Additional configurations:

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (-5 %) 2 to 4000 Hz 2 to 4000 Hz
Resonant Frequency ≥55 kHz ≥55 kHz
Electrical Filter Roll-off 6 dB/octave 6 dB/octave [2]
Electrical Filter Corner Frequency 15 kHz 15 kHz [2]
Broadband Resolution (1) 0.008 g rms 0.08 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +325 °F -54 to +163 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.3 to 1.0 sec 0.3 to 1.0 sec
Settling Time (within 10% of bias) ≤3.0 sec ≤3.0 sec
Spectral Noise (1 Hz) 445 µg/√Hz 4365 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 135 µg/√Hz 1325 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 90 µg/√Hz 883 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 80 µg/√Hz 785 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Welded Hermetic Welded Hermetic
Size - Height 0.4 in 10.2 mm
Size - Length 0.4 in 10.2 mm
Size - Width 0.4 in 10.2 mm
Weight (without cable) 0.14 oz 4.0 gm [2]
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Termination 1/4-28 4-Pin Jack 1/4-28 4-Pin Jack
Cable Length 5.0 ft 1.5 m
Cable Type 034 4-cond Shielded 034 4-cond Shielded
Mounting Stud Stud
Mounting Thread 5-40 Female 5-40 Female
Mounting Torque 4 to 5 in-lb 45 to 56 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
034G05 4-conductor, low noise, shielded FEP cable, 5-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z) 1
080A Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081A27 Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu 1
081A90 Mounting stud, 10-32 to 5-40 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081A27 Metric mtg stud, 5-40 to M3 x 0.50 long 1
