triaxial, low-profile, ceramic shear icp® accel., 10 mv/g, 1 to 9k hz, titanium hsg, mini 4-pin conn., no supplied mating cable

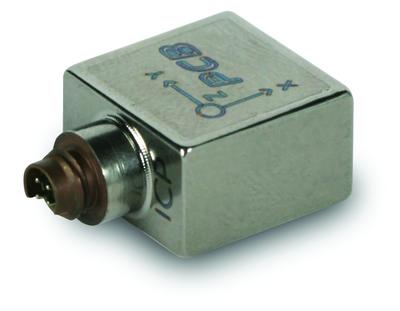

Accelerometer, ICP®, Triaxial

Model 356A24/NC

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-5 is 8 Wks.
Lead Time for 6-10 is 10 Wks.
  • CE
  • IP

Triaxial, low-profile, ceramic shear ICP® accel., 10 mV/g, 1 to 9k Hz, titanium hsg, mini 4-pin conn., no supplied mating cable

  • Sensitivity: (±15%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Electrical Connector: 8-36 4-Pin

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) 1 to 9000 Hz 1 to 9000 Hz
Frequency Range (±10 %) 0.5 to 12000 Hz 0.5 to 12000 Hz
Resonant Frequency ≥45 kHz ≥45 kHz
Broadband Resolution (1) 0.004 g rms 0.04 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2] [3]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.5 sec 1.0 to 3.5 sec
Settling Time (within 10% of bias) <10 sec <10 sec
Spectral Noise (1 Hz) 900 µg/√Hz 8820 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 250 µg/√Hz 2450 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 50 µg/√Hz 490 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.28 in 7.0 mm
Size - Length 0.47 in 12.0 mm
Size - Width 0.47 in 12.0 mm
Weight (without cable) 0.11 oz 3.1 gm [2]
Electrical Connector 8-36 4-Pin 8-36 4-Pin
Electrical Connection Position Side Side
Mounting Adhesive Adhesive

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
034K10 4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions


(HT) High temperature, extends normal operation temperatures

English SI
Temperature Range -65 to +325 -54 to +163

(J) Ground Isolated

English SI
Electrical Isolation 100000000
Size - Height 0.33 8.3
Size - Length 0.47 12.0
Size - Width 0.47 12.0
Weight 0.13 3.7
