triaxial, thru-hole mtg, ceramic shear icp® accel., 100 mv/g, 0.5 to 2k hz, ground isolated, 4-pin conn.

Accelerometer, ICP®, Triaxial

Model 354C03

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-10 is 8 Wks.
Lead Time for 11-20 is 10 Wks.
  • CE
  • IP

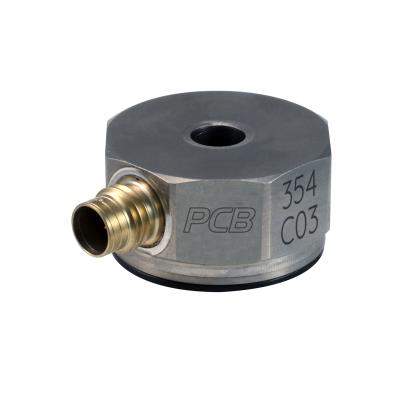

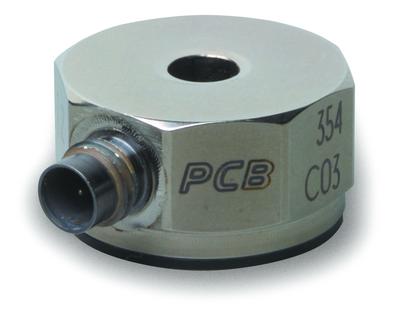

Triaxial, thru-hole mtg, ceramic shear ICP® accel., 100 mV/g, 0.5 to 2k Hz, ground isolated, 4-pin conn.

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk (±490 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.
[4] 250° F to 325° F data valid with HT option only.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) 0.5 to 2000 Hz 0.5 to 2000 Hz
Frequency Range (±10 %) 0.3 to 4000 Hz 0.3 to 4000 Hz
Frequency Range (±3 dB) 0.2 to 6000 Hz 0.2 to 6000 Hz
Resonant Frequency ≥12 kHz ≥12 kHz
Broadband Resolution (1) 0.0002 g rms 0.002 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C [4]
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity 0.005 g/µε 0.05 (m/s²)/µε [2]
Electrical
Excitation Voltage 21 to 30 VDC 21 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤300 Ohm ≤300 Ohm
Output Bias Voltage 10 to 14.5 VDC 10 to 14.5 VDC
Discharge Time Constant 0.8 to 2.4 sec 0.8 to 2.4 sec
Settling Time (within 10% of bias) <12 sec <12 sec
Spectral Noise (1 Hz) 100 µg/√Hz 980 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 30 µg/√Hz 294 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 10 µg/√Hz 98 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 3 µg/√Hz 29 (µm/sec2)/√Hz [2]
Electrical Isolation (Base) >100000000 Ohm >100000000 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Welded Hermetic Welded Hermetic
Size - Hex 0.815 in 20.7 mm
Size - Height 0.45 in 11.4 mm
Weight 0.55 oz 15.5 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Through Hole Through Hole

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
039A23 Allen wrench, 5/32" hex head (for use with 10-32 thd cap screws) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081B60 Off ground socket head cap screw assembly, 10-32 UNF-2A thd., 0.63 in length, stainless steel 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions

(A) Adhesive Mount
Accessories:
Supplied 080A90 Quick Bonding Gel 1

(HT) High temperature, extends normal operation temperatures

English SI
Frequency Range (&#177;10 %) 8 to 4000 8 to 4000 Hz
Frequency Range (&#177;3 dB) 5 to 6000 5 to 6000 Hz
Broadband Resolution .0004 .004
Temperature Range -65 to 325 -54 to 163
Discharge Time Constant .04 to 0.2
Spectral Noise 200 1961
Spectral Noise 75 735
Spectral Noise 20 196
Spectral Noise 8 79
Frequency Range (&#177;5 %) 10 to 2000 10 to 2000 Hz
(M) Metric Mount
Accessories:
Supplied M039A23 Allen wrench, 4mm hex 1
Supplied M081B60 Accessory for Vibration Division Product 1

(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Output Bias Voltage 10.5 to 15.5 VDC
Excitation Voltage 22 to 30 VDC

(TLA) TEDS LMS International - Free Format

English SI
Excitation Voltage 22 to 30 VDC
Output Bias Voltage 10.5 to 15.5 VDC

(TLB) TEDS LMS International - Automotive Format

English SI
Output Bias Voltage 10.5 to 15.5 VDC
Excitation Voltage 22 to 30 VDC

(TLC) TEDS LMS International - Aeronautical Format

English SI
Output Bias Voltage 10.5 to 15.5 VDC
Excitation Voltage 22 to 30 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Excitation Voltage 22 to 30 VDC
Output Bias Voltage 10.5 to 15.5
