platinum stock products; high sensitivity, quartz shear icp® accel., 100 mv/g, 1 to 4k hz, 10-32 top conn.
platinum

ICP® Accelerometer

Model 353B34

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
4 Lead Time for 1-10 is 4 Wks.
Lead Time for 11-20 is 5 Wks.
  • CE
  • IP

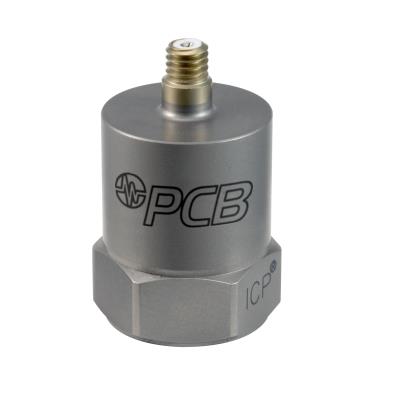

Platinum Stock Products; High sensitivity, quartz shear ICP® accel., 100 mV/g, 1 to 4k Hz, 10-32 top conn.

  • Sensitivity: (±5%)100 mV/g (10.19 mV/(m/s²))
  • Measurement Range: ±50 g pk (±491 m/s² pk)
  • Broadband Resolution: 0.0005 g rms (0.005 m/s² rms)
  • Frequency Range: (±5%)1 to 4000 Hz
  • Sensing Element: Quartz
  • Weight: 0.96 oz (27 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] B and Q options supplied with a sensitivity tolerance of ± 10 %.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±5 %) 100 mV/g 10.19 mV/(m/s²) [4]
Measurement Range ±50 g pk ±491 m/s² pk
Frequency Range (±5 %) 1 to 4000 Hz 1 to 4000 Hz
Frequency Range (±10 %) 0.7 to 7000 Hz 0.7 to 7000 Hz
Frequency Range (±3 dB) 0.35 to 12000 Hz 0.35 to 12000 Hz
Resonant Frequency ≥22 kHz ≥22 kHz
Broadband Resolution (1) 0.0005 g rms 0.005 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity 0.0002 g/µε 0.002 (m/s²)/µε [2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 7.5 to 12.0 VDC 7.5 to 12.0 VDC
Discharge Time Constant 0.5 to 2.0 sec 0.5 to 2.0 sec
Settling Time (within 10% of bias) <25 sec <25 sec
Spectral Noise (1 Hz) 320 µg/√Hz 3139 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 70 µg/√Hz 687 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 18 µg/√Hz 177 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 6.4 µg/√Hz 63 (µm/sec2)/√Hz [2]
Physical
Size - Height 1.26 in 32.0 mm
Size - Hex 0.75 in 19.1 mm
Weight 0.96 oz 27 gm [2]
Sensing Element Quartz Quartz
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Top Top
Mounting Thread 10-32 Female 10-32 Female

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A12 Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insolation hardcoat finish 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1

Optional Versions


(B) Low bias electronics

English SI
Output Bias Voltage 4.5 to 7.5 VDC
Excitation Voltage 12 to 30 VDC
Constant Current Excitation 1 to 20 mA
Measurement Range 30 g pk 294 m/s² pk

(J) Ground Isolated

English SI
Frequency Range 1 to 4000 Hz
Frequency Range 0.7 to 6000 Hz
Resonant Frequency 18 kHz
Electrical Isolation ≥100000000 Ohm
Size - Hex 0.75 in 19.1 mm
Size - Height 1.23 in 31.2 mm

(Q) Extended discharge time constant

English SI
Frequency Range 0.1 to 4000 Hz
Frequency Range 0.07 to 7000 Hz
Discharge Time Constant ≥10 sec
Settling Time <120 sec

(W) Water Resistant Cable

English SI
Electrical Connection Position Top

Build Out Your Measurement Chain
