low outgassing miniature, lightweight (0.64 gm), ceramic shear icp® accel., 10 mv/g, 0.5 to 10k hz, titanium hsg, base model 352a71, with label  for sensor model and s/n

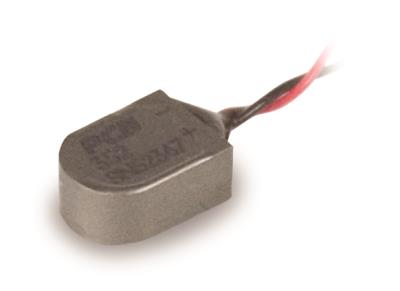

ICP® Accelerometer

Model 352M212

  • CE
  • IP

Low Outgassing Miniature, lightweight (0.64 gm), ceramic shear ICP® accel., 10 mV/g, 0.5 to 10k Hz, titanium hsg, base model 352A71, with label for sensor model and s/n

This accelerometer features low out-gassing construction that is ideal for use in thermal vacuum chambers for environmental testing.
  • Sensitivity: (±15%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4900 m/s² pk)
  • Broadband Resolution: 0.003 g rms (0.03 m/s² rms)
  • Frequency Range: (±5%)0.5 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.023 oz (0.64 gm)

Additional configurations:

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 0.5 to 10000 Hz 0.5 to 10000 Hz
Frequency Range (±10 %) 0.35 to 16000 Hz 0.35 to 16000 Hz
Frequency Range (±3 dB) 0.2 to 25000 Hz 0.2 to 25000 Hz
Resonant Frequency ≥65 kHz ≥65 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.5 sec 1.0 to 3.5 sec
Settling Time (within 10% of bias) ≤3 sec ≤3 sec
Spectral Noise 725 µg/√Hz 7110 [2]
Spectral Noise (10 Hz) 225 µg/√Hz 2210 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 60 µg/√Hz 590 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 20 µg/√Hz 196 (µm/sec2)/√Hz [2]
Physical
Size - Height .14 in 3.6 mm
Size - Length 0.41 in 10.4 mm
Size - Width 0.25 in 6.4 mm
Weight (without cable) 0.023 oz 0.64 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector Solder pins with attached cable Solder pins with attached cable
Electrical Connection Position Side Side
Cable Termination 10-32 Coaxial Plug 10-32 Coaxial Plug
Cable Length 10 ft 3.05 m
Cable Type 089 Twisted Pair 089 Twisted Pair
Mounting Adhesive Adhesive

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
039A32 Removal tool (for Model 352A71, 352A72) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
