Accelerometer, ICP®

Model 352C42

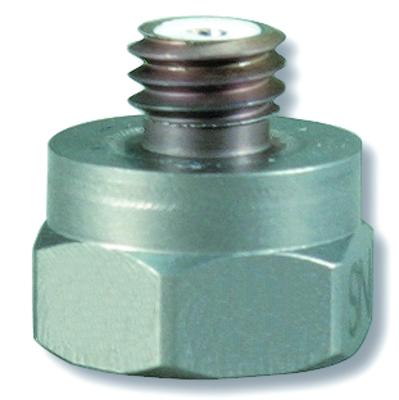

Low profile, miniature (2.8 gm), ceramic shear ICP® accel., 100 mV/g, 1 Hz to 10k Hz

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±491 m/s² pk)
Broadband Resolution: 0.0005 g rms (0.005 m/s² rms)
Frequency Range: (±5%)1.0 to 9000 Hz (1.0 to 9000 Hz)
Sensing Element: Ceramic
Weight: 0.10 oz (2.8 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±10 %)	100 mV/g	10.2 mV/(m/s²)
Measurement Range	±50 g pk	±491 m/s² pk
Frequency Range (±5 %)	1.0 to 9000 Hz	1.0 to 9000 Hz
Frequency Range (±10 %)	0.5 to 10000 Hz	0.5 to 10000 Hz
Frequency Range (±3 dB)	0.3 to 15000 Hz	0.3 to 15000 Hz
Resonant Frequency	≥30 kHz	≥30 kHz
Broadband Resolution (1)	0.0005 g rms	0.005 m/s² rms	[2]
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤5 %	≤5 %	[3]
Environmental
Overload Limit	±5000 g pk	±49050 m/s² pk
Temperature Range	-65 to +250 °F	-54 to +121 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[2]
Electrical
Excitation Voltage	22 to 30 VDC	22 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤200 Ohm	≤200 Ohm
Output Bias Voltage	8 to 15 VDC	8 to 15 VDC
Discharge Time Constant	0.5 to 2.0 sec	0.5 to 2.0 sec
Settling Time (within 10% of bias)	<10 sec	<10 sec
Spectral Noise (1 Hz)	120 µg/√Hz	1177 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	30 µg/√Hz	294 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	20 µg/√Hz	196 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	6 µg/√Hz	59 (µm/sec²)/√Hz	[2]
Physical
Size - Height	0.38 in	9.7 mm
Size - Hex	0.38 in	9.7 mm
Weight	0.10 oz	2.8 gm	[2]
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Welded Hermetic	Welded Hermetic
Electrical Connector	10-32 Coaxial Jack	10-32 Coaxial Jack
Electrical Connection Position	Top	Top
Mounting	Adhesive	Adhesive

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
080A90	Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces)	1
ACS-1	Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable	1
