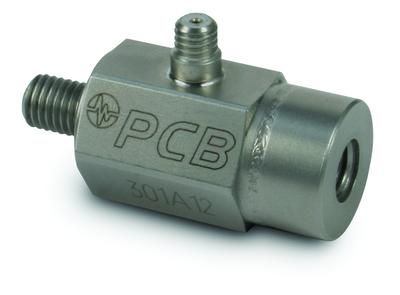

calibration icp® shock accel., 0.5 mv/g, 10,000 g, 1 to 10 khz, 10-32 side conn., 1/4-28 stud bottom, 1/4-28 top

ICP® Accelerometer

Model 301A12

Add to Quote
  • CE
  • IP

Calibration ICP® Shock Accel., 0.5 mV/g, 10,000 g, 1 to 10 kHz, 10-32 side conn., 1/4-28 Stud Bottom, 1/4-28 Top

  • Sensitivity: (±20%)0.5 mV/g (0.051 mV/(m/s²))
  • Measurement Range: ±10000 g pk (±98100 m/s² pk)
  • Broadband Resolution: 0.02 g rms (0.20)
  • Frequency Range: (±5%)1 to 10000 Hz
  • Sensing Element: Quartz
  • Weight: 1.5 oz (42 gm)

Specification Notes

[1] Typical.
[2] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) 0.5 mV/g 0.051 mV/(m/s²)
Measurement Range ±10000 g pk ±98100 m/s² pk
Frequency Range (±5 %) 1 to 10000 Hz 1 to 10000 Hz
Resonant Frequency ≥30 kHz ≥30 kHz
Broadband Resolution 0.02 g rms 0.20 [1]
Non-Linearity (per 1000 g (9810 m/s2)) ≤0.1 % ≤0.1 %
Transverse Sensitivity ≤3 % ≤3 %
Environmental
Overload Limit ±12500 g pk ±122625 m/s² pk
Temperature Range -65 to 250 °F -54 to 121 °C
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 <100
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.5 to 2.0 sec 0.5 to 2.0 sec [1]
Physical
Size - Height 1.43 in 36.3 mm
Size - Hex 5/8 in 5/8 in
Weight 1.5 oz 42 gm [1]
Sensing Element Quartz Quartz
Sensing Geometry Shear Shear
Housing Material 17-4 Stainless Steel 17-4 Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread (Shaker Mount) 1/4-28 Male 1/4-28 Male
Mounting Thread (Unit Under Test Mount) 1/4-28 Female 1/4-28 Female

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
ACS-14 High G accel. verification using Hopkinson bar to max g range, (NIST traceable). 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
081A08 Mounting stud, 10-32 to 1/4-28 x 0.30" long, BeCu 2
081B20 Mounting stud, 1/4-28 to 1/4-28 x 0.365" long, BeCu w/shoulder 2
M081B20 Metric mounting stud, 1/4-28 to M6 x 0.75, BeCu w/shoulder 2
