triax force sensor, icp®, 10k lb (fz), 4k lb (fx,y), 0.25 mv/lb (z), 1.25 mv/lb (x, y), ground isolated

3-Component ICP® Force Sensor

Model 260B03

Add to Quote
  • CE
  • IP

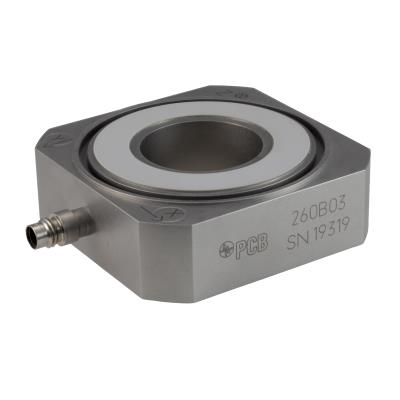

Triax force sensor, ICP®, 10k lb (Fz), 4k lb (Fx,y), 0.25 mV/lb (z), 1.25 mV/lb (x, y), ground isolated

  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Electrical Connector: 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Sensitivities are dependent upon supplied bolt.
[2] Typical.
[4] Preload should be at least 10 times the X and Y operating range used.
[5] See PCB White Paper WPL_88_1121 for details.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) (Z Axis) 0.25 mV/lb 0.06 mV/N [3]
Sensitivity (±20 %) (X or Y Axis) 1.25 mV/lb 0.28 mV/N [3]
Measurement Range (Z Axis) 10000 lb 44.48 kN
Measurement Range (X or Y Axis) 4000 lb 17.79 kN
Maximum Force (Z Axis) 11000 lb 48.93 kN
Maximum Force (X or Y Axis) 4400 lb 19.57 kN
Maximum Moment (Z Axis) 375 ft-lb 508.4 Nm
Maximum Moment (X or Y Axis) 470 ft-lb 637.2 Nm
Broadband Resolution (Z Axis) 0.05 lb-rms 0.222 N-rms [2]
Broadband Resolution (X or Y Axis) 0.01 lb-rms 0.04 N-rms [2]
Low Frequency Response (-5 %) (Z-Axis) 0.01 Hz 0.01 Hz
Low Frequency Response (-5 %) (X or Y Axis) 0.001 Hz 0.001 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y Axis) and Z Axis) ±5 % ±5 %
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Full Scale Output (Z Direction) ±2.5 VDC ±2.5 VDC
Full Scale Output (X and Y Direction) ±5 VDC ±5 VDC
Discharge Time Constant (Z Axis) ≥50 sec ≥50 sec
Discharge Time Constant (X or Y Axis) ≥500 sec ≥500 sec
Excitation Voltage (all channels) 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation (all channels) 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) (X & Y) 0.003 lb/√Hz 0.0134 N/√Hz
Spectral Noise (10 Hz) (X & Y) 0.001 lb/√Hz 0.00445 N/√Hz
Spectral Noise (100 Hz) (X & Y) 0.0004 lb/√Hz 0.00178 N/√Hz
Spectral Noise (1000 Hz) (X & Y) 0.0001 lb/√Hz 0.000445 N/√Hz
Spectral Noise (1 Hz) (Z) 0.02 lb/√Hz 0.089 N/√Hz
Spectral Noise (10 Hz) (Z) 0.005 lb/√Hz 0.0222 N/√Hz
Spectral Noise (100 Hz) (Z) 0.002 lb/√Hz 0.0089 N/√Hz
Spectral Noise (1000 Hz) (Z) 0.0005 lb/√Hz 0.00222 N/√Hz
Output Polarity Positive Positive
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Preload 40000 lb 178 kN [4]
Stiffness (X or Y Axis) 6.9 lb/µin 1215 N/µm [2] [5]
Stiffness (Z Axis) 37.9 lb/µin 6645 N/µm [2] [5]
Stiffness (RX or RY Axis) 1.1E7 lbf*in/radian 1.3E6 N*m/radian [2] [5]
Stiffness (RZ Axis) 1.2E7 lbf*in/radian 1.4E6 N*m/radian [2] [5]
Coupled Stiffness 0.6 lbf*in/µin 2.7 N*m/µm [2] [5]
Weight 9.65 oz 274 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 4-Pin 4-Pin
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
081A71 Pre-load bolt (for Models 260A03, 260A13 & 260A33) 1
082B06 Anti-friction washer for Models (M)206C, (M)216B, (M)260A03, (M)260A13 & (M)260A33 1
083A11 Pilot bushing (for Models 260A03, 260A13, & 260A33) 1
M081A71 Pre-load bolt (for Models 260A03, 260A13 & 260A33) 1

Optional Versions

(W) Water Resistant Cable

English SI
Electrical Connection Position Side
