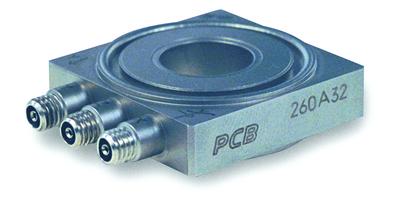

| Performance |
| Sensitivity (±15 %) (Z Axis) |
15 pC/lb |
3.37 pC/N |
[2]
|
| Sensitivity (±15 %) (X or Y Axis) |
32 pC/lb |
7.19 pC/N |
[2]
|
| Measurement Range (Z Axis) |
1000 lb |
4.45 kN |
|
| Measurement Range (X or Y Axis) |
1000 lb |
4.45 kN |
|
| Maximum Force (Z Axis) |
1320 lb |
5.87 kN |
|
| Maximum Force (X or Y Axis) |
1000 lb |
4.45 kN |
|
| Maximum Moment (Z Axis) |
40 ft-lb |
54.23 Nm |
|
| Maximum Moment (X or Y Axis) |
70 ft-lb |
94.91 Nm |
|
| Upper Frequency Limit |
90000 Hz |
90000 Hz |
|
| Non-Linearity |
≤1 % FS |
≤1 % FS |
[1]
|
| Cross Talk (between X and Y Axis) |
±3 % |
±3 % |
|
| Cross Talk (between (X or Y Axis) and Z Axis) |
±5 % |
±5 % |
|
| Environmental |
| Temperature Range |
-100 to +350 °F |
-73 to +177 °C |
|
| Electrical |
| Capacitance (all channels) |
30 pF |
30 pF |
[3]
|
| Insulation Resistance (all channels) |
≥1000000000 Ohm |
≥1000000000 Ohm |
|
| Output Polarity (in direction of markings) |
Negative |
Negative |
|
| Physical |
| Preload |
≤10000 lb |
≤44.48 kN |
[4]
|
| Stiffness (X or Y Axis) |
6 lb/µin |
1 kN/µm |
[3]
|
| Stiffness (Z Axis) |
19 lb/µin |
3.3 kN/µm |
[3]
|
| Size - Height |
0.390 in |
9.90 mm |
|
| Size - Length |
1.25 in |
31.8 mm |
|
| Size - Width |
1.25 in |
31.8 mm |
|
| Size - Bolt Diameter |
0.500 in |
13 mm |
|
| Size - ID |
0.512 in |
13 mm |
|
| Size - Sensing Surface |
0.920 in |
23.37 mm |
|
| Weight |
1.5 oz |
42.5 gm |
|
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Sealing |
Hermetic |
Hermetic |
|
| Electrical Connector (Quantity, 3) |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
| Electrical Connection Position |
Side |
Side |
|
