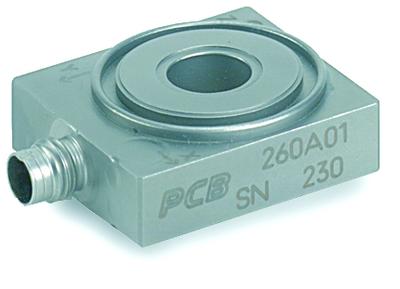

triax icp® force sensor, 1k lb (fz), 500 lb (fx,y), 2.5 mv/lb (z), 10 mv/lb (x, y)

Force Sensor, ICP®, 3-Component

Model 260A01

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Triax ICP® force sensor, 1k lb (Fz), 500 lb (Fx,y), 2.5 mV/lb (z), 10 mV/lb (x, y)

  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Electrical Connector: 4-Pin

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Sensitivites are for listed preload. Sensitivites may vary ±5% depending on preload used.
[4] Sensitivities are dependent upon supplied bolt.
[2] Typical.
[5] Preload should be at least 10 times the X and Y operating range used.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) (Z Axis) 2.5 mV/lb 0.56 mV/N [3] [4]
Sensitivity (±20 %) (X or Y Axis) 10 mV/lb 2.25 mV/N [3] [4]
Measurement Range (Z Axis) 1000 lb 4.45 kN
Measurement Range (X or Y Axis) 500 lb 2.22 kN
Maximum Force (Z Axis) 1320 lb 5.87 kN
Maximum Force (X or Y Axis) 660 lb 2.94 kN
Maximum Moment (Z Axis) 14 ft-lb 18.98 Nm
Maximum Moment (X or Y Axis) 13 ft-lb 17.63 Nm
Broadband Resolution (z axis) 0.006 lb-rms 0.027 N-rms [2]
Broadband Resolution (x or y axis) 0.002 lb-rms 0.0089 N-rms [2]
Upper Frequency Limit 90 kHz 90 kHz
Low Frequency Response (-5 %) (Z-Axis) 0.01 Hz 0.01 Hz
Low Frequency Response (-5 %) (X or Y Axis) 0.001 Hz 0.001 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y Axis) and Z Axis) ±5 % ±5 %
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Full Scale Output (Z Direction) ±2.5 VDC ±2.5 VDC
Full Scale Output (X and Y Direction) ±5 VDC ±5 VDC
Discharge Time Constant (Z Axis) ≥50 sec ≥50 sec
Discharge Time Constant (X or Y Axis) ≥500 sec ≥500 sec
Excitation Voltage (all channels) 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation (all channels) 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.0003 lb/√Hz 0.00134 N/√Hz
Spectral Noise (10 Hz) 0.00015 lb/√Hz 0.000668 N/√Hz
Spectral Noise (100 Hz) 0.00005 lb/√Hz 0.000223 N/√Hz
Spectral Noise (1000 Hz) 0.000015 lb/√Hz 0.0000668 N/√Hz
Spectral Noise (1 Hz) 0.0015 lb/√Hz 0.00668 N/√Hz
Spectral Noise (10 Hz) 0.00055 lb/√Hz 0.00245 N/√Hz
Spectral Noise (100 Hz) 0.0002 lb/√Hz 0.000891 N/√Hz
Spectral Noise (1000 Hz) 0.000055 lb/√Hz 0.000245 N/√Hz
Output Polarity Positive Positive
Physical
Preload 5000 lb 22.25 kN [5]
Stiffness (Z Axis) 10 lb/µin 1.75 kN/µm [2]
Stiffness (X or Y Axis) 4 lb/µin 0.7 kN/µm [2]
Size - Height 0.390 in 9.90 mm
Size - Length 1.075 in 27.3 mm
Size - Width 0.95 in 24.1 mm
Size - Bolt Diameter 0.205 in 5.21 mm
Size - ID 0.319 in 8.10 mm
Size - Sensing Surface 0.680 in 17.27 mm
Weight 0.927 oz 26.27 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 4-Pin 4-Pin
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
081A70 Pre-load bolt (for Models 260A01, 260A11, & 260A31) 1
082B02 Anti-friction washer for Models (M)202B, (M)212B, (M)260A01, (M)260A11 & (M)260A31 1
083A10 Pilot bushing (for Models 260A01, 260A11 & 260A31) 1
M081A70 Pre-load bolt (for Models 260A01, 260A11 & 260A31) 1

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connection Position Side

Build Out Your Measurement Chain
