link quartz force sensor, 35k lb comp., 12k lb tension, 18 pc/lb

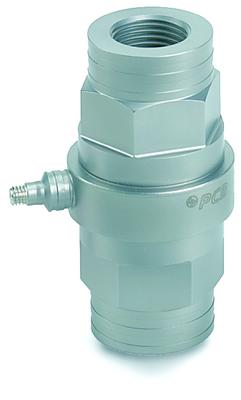

CHARGE OUTPUT FORCE SENSOR

Model 235B

  • IP

Link quartz force sensor, 35k lb comp., 12k lb tension, 18 pC/lb

    Specification Notes


    [1] Zero-based, least-squares, straight line method.

    English: SI:
    Performance
    Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
    Measurement Range (Compression) ≤35000 lb ≤155.68 kN
    Measurement Range (Tension) ≤12000 lb ≤53.38 kN
    Maximum Static Force (Compression) 45000 lb 200.16 kN
    Maximum Static Force (Tension) 15000 lb 66.72 kN
    Upper Frequency Limit 6000 Hz 6000 Hz
    Non-Linearity ≤1 % FS ≤1 % FS [1]
    Environmental
    Temperature Range -100 to +400 °F -73 to +204 °C
    Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
    Electrical
    Capacitance 38 pF 38 pF
    Insulation Resistance ≥1E12 ≥1E12
    Output Polarity (Compression) Negative Negative
    Physical
    Stiffness 6 lb/µin 1.05 kN/µm
    Size - Hex 1.187 in 30.16 mm
    Size - Height 3.000 in 76.20 mm
    Size - Sensing Surface 1.580 in 40.13 mm
    Weight 14.5 oz 412 gm
    Housing Material Stainless Steel Stainless Steel
    Sealing Hermetic Hermetic
    Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
    Electrical Connection Position Side Side
    Mounting Thread 3/4-16 Male 3/4-16 Male
