link quartz force sensor, 12k lb comp., 4k lb tension, 18 pc/lb

Force Sensor, Charge Output

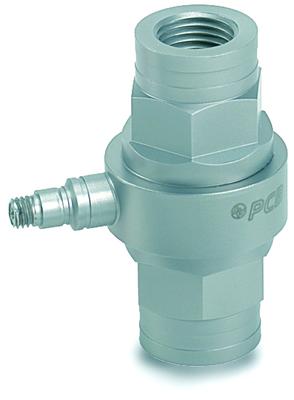

Model 233B

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

Link quartz force sensor, 12k lb comp., 4k lb tension, 18 pC/lb

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 10000 Hz
  • Temperature Range: -100 to +400 °F (-73 to +204 °C)
  • Mounting Thread: 1/2 - 20 Female (No Metric Equivalent)
  • Weight: 4.2 oz (120 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.

English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) ≤12000 lb ≤53.38 kN
Measurement Range (Tension) ≤4000 lb ≤17.79 kN
Maximum Static Force (Compression) 10000 lb 44.48 kN
Maximum Static Force (Tension) 4500 lb 20.02 kN
Upper Frequency Limit 10000 Hz 10000 Hz [2] [3]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -100 to +400 °F -73 to +204 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance ≥28 pF ≥28 pF [4]
Insulation Resistance ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity (Compression) Negative Negative
Physical
Stiffness 4 lb/µin 0.7 kN/µm [4]
Size - Diameter 1.10 in 27.94 mm
Size - Height 2.00 in 50.8 mm
Weight 4.2 oz 120 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 1/2 - 20 Female No Metric Equivalent

* All specifications are at room temperature unless otherwise specified.

Optional Versions


(M) Metric Mount

English SI
Mounting Thread No English Equivalent M12 x 1.25 Female

(W) Water Resistant Cable

English SI
Electrical Connection Position Side
