cryogenic accelerometer, pe, 11.5 pc/g, -452°f to +500°f, isolated, 10-32 mounting stud, top connector, 27 grams, no cable incl.

Low-Temp PE Accel

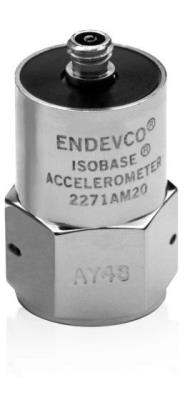

Model 2271AM20-R

Add to Quote
  • IP

Cryogenic Accelerometer, PE, 11.5 pC/g, -452°F to +500°F, isolated, 10-32 mounting stud, top connector, 27 grams, no cable incl.

    Specification Notes

    English: SI:
    General
    Output type Charge Charge
    Sensitivity 11.5 pC/g 1.17 pC/(m/sec2)
    Max Temp 500°F 260°C
    Max Measurement Range 10000 g pk 98100 m/sec2 pk
    Max Frequency (±5%) 4000 Hz 4000 Hz
    Number of Axis 1 1
    Replacement (-R) Yes Yes

    * All specifications are at room temperature unless otherwise specified.
