accelerometer, pe, 2.2 pc/g, comparison standard accel, 1/4-28 integral mounting stud, 1/4-28 test mounting hole, 40 grams

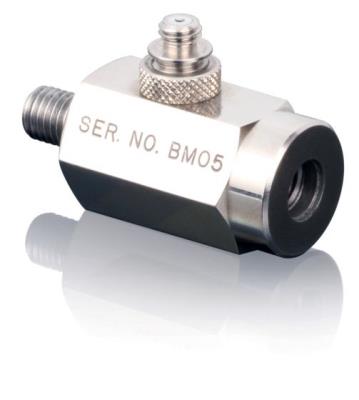

STANDARD ACCELEROMETER (CS120)

Model 2270

Add to Quote
  • IP

Accelerometer, PE, 2.2 pC/g, comparison standard accel, 1/4-28 integral mounting stud, 1/4-28 test mounting hole, 40 grams

    Specification Notes

    English: SI:
    General
    Output type Charge Charge
    Sensitivity 2.2 pC/g 0.22 pC/(m/sec2)
    Max Temp 350°F 177°C
    Max Measurement Range 1000 g pk 9810 m/sec2 pk
    Max Frequency (±5%) 20000 Hz 20000 Hz
    Number of Axis 1 1
    Replacement (-R) No No

    * All specifications are at room temperature unless otherwise specified.
