pcb link icp® quartz force sensor, 6k lb comp., 2500 lb tension, 0.9 mv/lb

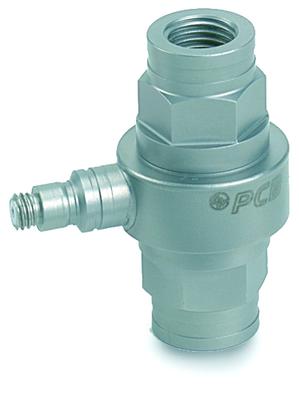

ICP® Force Sensor

Model 222B

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

PCB Link ICP® quartz force sensor, 6k lb comp., 2500 lb tension, 0.9 mV/lb

  • Measurement Range: 6000 lb (26.69 kN)
  • Sensitivity: (±15%)0.90 mV/lb (202.33 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 12000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 3/8 - 24 Female

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.

English: SI:
Performance
Sensitivity (±15 %) 0.90 mV/lb 202.33 mV/kN
Measurement Range (Compression) 6000 lb 26.69 kN
Measurement Range (Tension) 2500 lb 11.12 kN
Maximum Static Force (Compression) 6000 lb 26.69 kN
Maximum Static Force (Tension) 2800 lb 12.46 kN
Broadband Resolution (1) 0.2 lb-rms 0.8896 N-rms [2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 12000 Hz 12000 Hz [4]
Non-Linearity ≤1.5 % FS ≤1.5 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Physical
Stiffness 3 lb/µin 0.53 kN/µm [2]
Size - Diameter 0.870 in 22.1 mm
Size - Height 1.620 in 41.51 mm
Weight 2 oz 58 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 3/8 - 24 Female 3/8 - 24 Female

* All specifications are at room temperature unless otherwise specified.

Optional Versions

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
