miniature icp® force sensor, 1 sec dtc, 2.2 lb comp., 1 lb tension, 2200 mv/lb

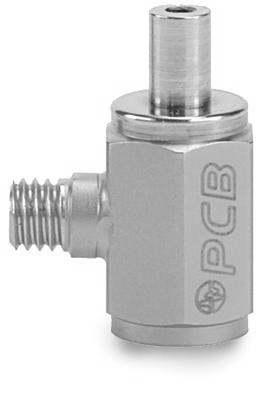

Force Sensor, ICP®

Model 209C11

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Miniature ICP® force sensor, 1 sec DTC, 2.2 lb comp., 1 lb tension, 2200 mV/lb

  • Measurement Range: 2.2 lb (0.00979 kN)
  • Sensitivity: (±15%)2200 mV/lb (494604 mV/kN)
  • Low Frequency Response: (-5%)0.5 Hz
  • Upper Frequency Limit: 30000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 10-32 Female (No Metric Equivalent)

Specification Notes

[1] Typical.
[2] Calculated from discharge time constant.
[3] Estimated using rigid body dynamics calculations.
[1] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 2200 mV/lb 494604 mV/kN
Measurement Range (Compression) 2.2 lb 0.00979 kN
Measurement Range (Tension) 1.0 lb 0.00445 kN
Maximum Static Force (Compression) 11 lb 0.0489 kN
Maximum Static Force (Tension) 1.0 lb 0.00445 kN
Broadband Resolution (1) 0.00002 lb-rms 0.00009 N-rms [1]
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz [2]
Upper Frequency Limit 30000 Hz 30000 Hz [3]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.05 %/°F ≤0.09 %/°C
Electrical
Discharge Time Constant (at room temp) ≥1 sec ≥1 sec
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (1 Hz) 0.00000442 lb/√Hz 0.0000197 N/√Hz [1]
Spectral Noise (10 Hz) 0.000000464 lb/√Hz 0.00000207 N√Hz [1]
Spectral Noise (100 Hz) 0.00000013 lb/√Hz 0.00000058 N/√Hz [1]
Spectral Noise (1000 Hz) 0.0000000481 lb/√Hz 0.000000215 N/√Hz [1]
Output Polarity (Compression) Positive Positive
Physical
Stiffness 2 lb/µin 0.35 kN/µm [1]
Size - Hex 0.375 in 9.53 mm
Size - Height 0.83 in 21.08 mm
Weight 0.29 oz 8.2 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female No Metric Equivalent

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
081A05 Mounting stud, 10-32 to 10-32 x 0.27" long, BeCu (H900), no shoulder 1
084A38 Thermal boot (for Series 209) 1

Optional Versions

(M) Metric Mount
Accessories:
Supplied M081A05 Mounting Stud 10-32 to M6 x 0.75 x 0.27" long BeCu (H900), no shoulder 1

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
