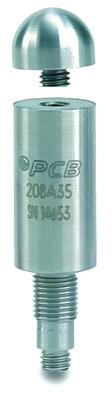

penetration icp® force sensor, 5k lb comp., 500 lb tension, 1 mv/lb, removable hemispherical cap

Force Sensor, ICP®

Model 208A35

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Penetration ICP® force sensor, 5k lb comp., 500 lb tension, 1 mV/lb, removable hemispherical cap

  • Measurement Range: 5000 lb (22.24 kN)
  • Sensitivity: (±15%)1 mV/lb (224.82 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 20000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: No English Equivalent (M7 x 0.75 Male)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.

English: SI:
Performance
Sensitivity (±15 %) 1 mV/lb 224.82 mV/kN
Measurement Range (Compression) 5000 lb 22.24 kN
Measurement Range (Tension) 500 lb 2.224 kN
Maximum Static Force (Compression) 5000 lb 22.24 kN
Maximum Static Force (Tension) 750 lb 3.336 kN
Broadband Resolution (1) 0.10 lb-rms 0.0004448 N-rms [2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 20000 Hz 20000 Hz [4]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Output Polarity (Compression) Positive Positive
Physical
Stiffness 5 lb/µin 0.88 kN/µm [2]
Size - Diameter 0.50 in 12.7 mm
Size - Height 1.87 in 47.50 mm
Weight 1.06 oz 30 gm
Housing Material Stainless Steel Stainless Steel
Impact Tip Material 17-4 SS 17-4 SS
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Axial Axial
Mounting Thread No English Equivalent M7 x 0.75 Male

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
084A35 Impact cap, hemispherical (for Model 208A35) 1
