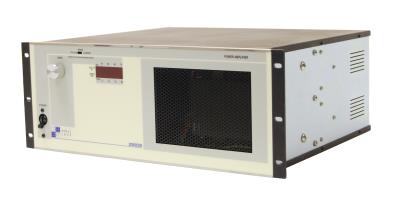

LINEAR POWER AMPLIFIER

Model 2050E09

  • IP

Linear Power Amplifier, 900 W, selectable current/voltage mode, continuous gain adjustment, 200-240V line power

  • Weight: 61 lb (28 kg)
  • Output Power: 900 W

Specification Notes


[1] Integral power cable (bare wire termination, power plug not provided)
[2] 19" rack mountable

English: SI:
Performance
Frequency Response (-0.6 dB) DC to 10 kHz DC to 10 kHz
Voltage Gain (Voltage Mode) 36 dB 36 dB
Voltage Gain (Current mode) 22 A/V 22 A/V
Protection Features Interlock Switch Interlock Switch
Amplifier Performance
Input Voltage, RMS 200, 220, 240 VAC 200, 220, 240 VAC [1]
Input Power 50 / 60 Hz 50 / 60 Hz
Output Power 900 W 900 W
Cooling 2-Speed Fans Automatic 2-Speed Fans Automatic
Electrical
Output Current 20 ARMS 20 ARMS
Output Voltage 50 V RMS 50 V RMS
Input Impedance 10 kΩ 10 kΩ
Physical
Size - Height 7 in 178 mm [2]
Size - Width 19 in 483 mm
Size - Depth 17 in 432 mm
Weight 61 lb 28 kg
Front Panel Display(19 segments, ±5%) (Voltage) 0 to 72 Vpk 0 to 72 Vpk
Front Panel Display(19 segments, ±5%) (Current) 0 to 20 Arms 0 to 20 Arms

* All specifications are at room temperature unless otherwise specified.
