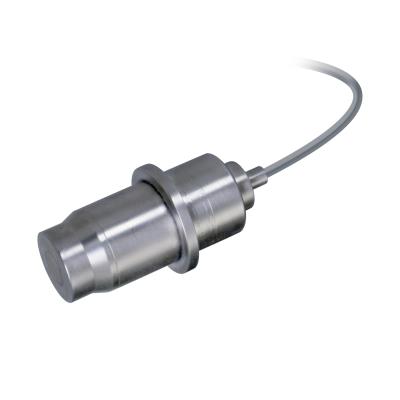

Charge Output Pressure Sensor

Model 176A13

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

Differential charge output pressure sensor with UHT-12 ® element, 16.0 pC/psi, +1200 F, ATEX-CSA approved

Measurement Range: 290 psi (20 bar)
Sensing Element: UHT-12™
Temperature Range: -94 to 1200 °F (-70 to 650 °C)
Electrical Connector: LEMO
Weight: 7.68 oz (217.7 gm)

Additional configurations:

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] Upper frequency response is calculated from Resonant Frequency.
[2] Typical.
[5] Maximum.
[2] Typical.
[6] See PCB Declaration of Conformance PS058 for details.

	English:	SI:
Performance
Sensitivity (±20 %)	16 pC/psi	232 pC/bar
Sensitivity (±20 %)	16 pC/psi	232 pC/bar
Measurement Range	290 psi	20 bar
Maximum Pressure (Total)	5000 psi	344.7 bar
Resonant Frequency	≥50 kHz	≥50 kHz
Transverse Resonance	10 kHz	10 kHz	[2]
Frequency Response	10 kHz	10 kHz	[3] [4]
Non-Linearity	≤1 % FS	≤1 % FS	[1]
Environmental
Acceleration Sensitivity	0.003 psi/g	0.00021 bar/g	[2]
Acceleration Sensitivity	.007 psi/g	.00050 bar/g	[5]
Temperature Range (Continuous)	-94 to 1200 °F	-70 to 650 °C
Temperature Range (Connector)	-76 to 250 °F	-60 to 121 °C
Temperature Response	See Graph %/°F	See Graph %/°F
Hazardous Area Approval	See Manual	See Manual
Radiation Exposure Limit (Integrated Gamma Flux)	1E8 rad	1E8 rad
Radiation Exposure Limit (Integrated Neutron Flux)	1E10 N/cm²	1E10 N/cm²
Electrical
Output Polarity	Differential	Differential
Capacitance (with cable pin - pin)	153 pF	153 pF	[2]
Resistance(Pin-Pin) (Room Temp)	≥1000000000 Ohm	≥1000000000 Ohm
Resistance(Pin-Case) (Room Temp)	≥1000000000 Ohm	≥1000000000 Ohm
Resistance(Pin-Pin) (1200°F/650°C)	≥50 kohm	≥50 kohm
Resistance(Pin-Case) (1200°F/650°C)	≥100 kohm	≥100 kohm
Physical
Sensing Element	UHT-12™	UHT-12™
Sensing Geometry	Compression	Compression
Housing Material	Nickel Alloy	Nickel Alloy
Sealing	Welded Hermetic	Welded Hermetic
Electrical Connector	LEMO	LEMO
Cable Type	Hardline	Hardline
Cable Length	10 ft	3.05 m
Weight (with cable)	7.68 oz	217.7 gm
