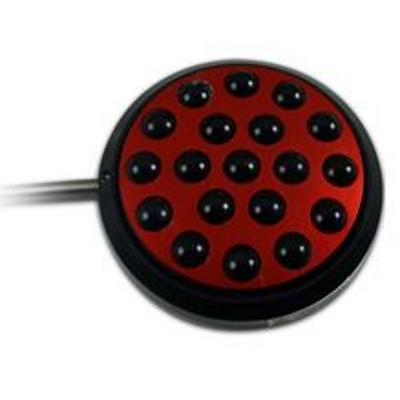

pcb l&t pedal force transducer, 500 lbf (2224 n) rated capacity, 50% static overload protection, 2mv/v output, 10-foot integral cable with open wire end, aluminum construction

Load Cell, Pedal Force

Model 1515-110-05A

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-1 is 3 Wks.
  • IP

PCB L&T Pedal Force Transducer, 500 lbf (2224 N) rated capacity, 50% static overload protection, 2mV/V output, 10-foot Integral cable with open wire end, aluminum construction

  • Measurement Range: 500 lbf (2224 N)
  • Sensitivity: 3.30 mV/V
  • Size - Height: 0.84 in (21.4 mm)

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] Over compensated operating temperature range.
[1] Nominal.
[4] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.

English: SI:
Performance
Measurement Range (Full Scale Capacity) 500 lbf 2224 N
Sensitivity (output at rated capacity) 3.30 mV/V 3.30 mV/V [1] [2]
Non-Linearity ≤0.20 % FS ≤0.20 % FS [2]
Hysteresis ≤0.30 % FS ≤0.30 % FS [2]
Non-Repeatability ≤0.05 % FS ≤0.05 % FS [2]
Environmental
Overload Limit 750 lbf 3336 N
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Range (Compensated) +70 to +170 °F +21 to +76 °C
Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0036 %Reading/°C [3]
Temperature Effect on Zero Balance (Maximum) ±0.002 %FS/°F ±0.0036 %FS/°C [2]
Electrical
Bridge Resistance 700 Ohm 700 Ohm [1]
Excitation Voltage 10 VDC 10 VDC [4]
Insulation Resistance 5 GOhm 5 GOhm
Zero Balance ≤5 %RO ≤5 %RO
Physical
Size - Height 0.84 in 21.4 mm
Size - Width 3.24 in 82.3 mm
Size - Length 5.00 in 127.0 mm
Weight 1.25 lb 0.57 kg
Mounting Straps or Hose Clamps Straps or Hose Clamps
Housing Material Plated Steel Plated Steel
Sensing Element Strain Gage Strain Gage
Electrical Connector pigtail ends pigtail ends
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
100-10148-60 2
100-10192-90 2
52110-001200 25
52110-003500 25
