high pressure ballistic pressure sensor, 120k psi, 0.25 pc/psi, accel comp., floating clamp nut

CHARGE OUTPUT PRESSURE SENSOR

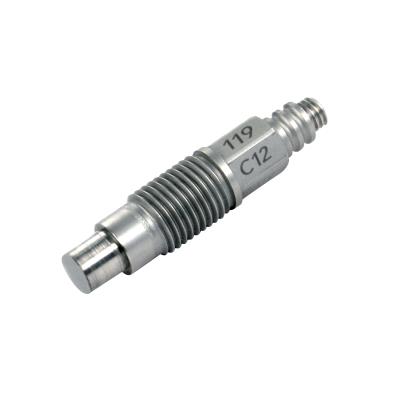

Model 119C12

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

High pressure ballistic pressure sensor, 120k psi, 0.25 pC/psi, accel comp., floating clamp nut

  • Measurement Range: 100000 psi (690,000 kPa)
  • Sensing Element: Quartz
  • Temperature Range: -300 to 400 °F (-184 to 204 °C)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: .5 oz (14 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS158 for details.

English: SI:
Performance
Sensitivity (±15 %) 0.25 pC/psi 0.036 pC/kPa
Sensitivity (±15 %) 0.25 pC/psi 0.036 pC/kPa
Measurement Range 100000 psi 690,000 kPa
Maximum Pressure 125,000 psi 862000 kPa
Resonant Frequency ≥400 kHz ≥400 kHz
Rise Time (Reflected) ≤2 µ sec ≤2 µ sec
Non-Linearity ≤2 % FS ≤2 % FS [1]
Environmental
Acceleration Sensitivity 0.02 psi/g 0.014 kPa/(m/s²) [2]
Temperature Range (Operating) -300 to 400 °F -184 to 204 °C
Temperature Coefficient of Sensitivity ≤0.07 %/°F ≤0.126 %/°C
Maximum Flash Temperature 4000 °F 2204 °C
Maximum Vibration 2000 g pk 19600 m/s² pk
Maximum Shock 50000 g pk 490000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Negative Negative
Capacitance 20 pF 20 pF [2]
Insulation Resistance (at room temp) ≥1000000000000 Ohm ≥1000000000000 Ohm
Insulation Resistance (at room temp) ≥1E12 Ohm ≥1E12 Ohm
Physical
Sensing Element Quartz Quartz
Housing Material C-300 C-300
Diaphragm C-300 C-300
Sealing Epoxy Epoxy
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight .5 oz 14 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-2 Calibration of pressure sensors up to 100k psi (includes Series 117B in oil, excludes model 113B50) 0
065A06 Seal ring, 0.318" OD x 0.250" ID x 0.010" thick, 316L SS (for Series 108, 109, 118 and 119) 3

Optional Versions

(H) Hermetic Seal

English SI
Sealing Welded Hermetic
Maximum Shock 20000 g pk 196200
Housing Material 17-4 Stainless Steel
