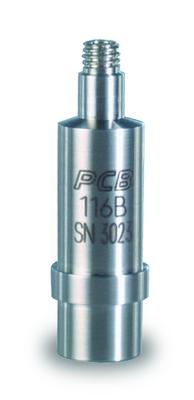

high temperature (+750 f/398 c) pressure sensor, 100 psi, 6 pc/psi

Charge Output Pressure Sensor

Model 116B03

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

High temperature (+750 F/398 C) pressure sensor, 100 psi, 6 pC/psi

  • Measurement Range: 100 psi (690 kPa)
  • Sensing Element: Quartz
  • Temperature Range: -400 to 750 °F (-240 to 399 °C)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: .717 oz (20.3 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] When used with blocking capacitor and hardline cable.
[2] Typical.
[4] See PCB Declaration of Conformance PS158 for details.

English: SI:
Performance
Sensitivity (±15 %) 6 pC/psi 0.870 pC/kPa
Sensitivity (±15 %) 6 pC/psi 0.870 pC/kPa
Measurement Range 100 psi 690 kPa
Maximum Pressure 3000 psi 20685 kPa
Resonant Frequency ≥55 kHz ≥55 kHz
Rise Time (Reflected) ≤9 µ sec ≤9 µ sec
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Acceleration Sensitivity 0.029 psi/g 0.0204 kPa/(m/s²) [2]
Temperature Range (Operating) -400 to 750 °F -240 to 399 °C [3]
Temperature Coefficient of Sensitivity ≤0.04 %/°F ≤0.072 %/°C
Maximum Flash Temperature 3000 °F 1649 °C
Maximum Vibration 500 g pk 4900 m/s² pk
Maximum Shock 2000 g pk 19600 m/s² pk
Electrical
Output Polarity (Positive Pressure) Negative Negative
Capacitance 30 pF 30 pF [2]
Insulation Resistance (at room temp) >100000000000 Ohm >100000000000 Ohm
Insulation Resistance (at 600°F[315°C]) >1000000000 Ohm >1000000000 Ohm
Insulation Resistance (at 750°F[399°C]) >100000000 Ohm >100000000 Ohm
Insulation Resistance (at room temp) >100000000000 Ohm >100000000000 Ohm
Physical
Sensing Element Quartz Quartz
Housing Material 316L Stainless Steel 316L Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight .717 oz 20.3 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-17 1
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
PCS-10 Single point sensitivity coefficient at sensor maximum operating temperature 0
PCS-24 0
060A12 Clamp nut, 9/16-18-2A thd, 9/16" hex (for Models 106B & 116B) 1
060A14 Metric clamp nut, M14 x 1.25-6G thd, 14 mm hex, SS (for Models M106B & M116B) 1
065A37 Seal ring, 0.497" OD x 0.437" ID x 0.025" thick, brass (for Model 106B) 3

Optional Versions

(E) Emralon coating

English SI
Temperature Range -65 to 275 °F -54 to 135 °C
Temperature Range -65 to 275 °F -54 to 135 °C
