subminiature icp® pressure sensor, 1 mv/psi, 0.099 dia. diaphragm, 10-32 mtg thd

ICP® Pressure Sensor

Model 105C22

Add to Quote
  • CE
  • IP

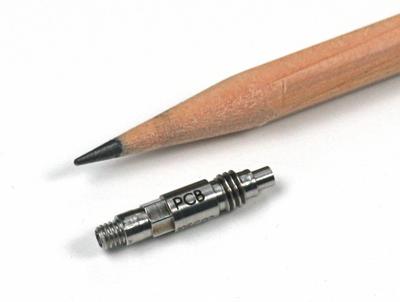

Subminiature ICP® pressure sensor, 1 mV/psi, 0.099" dia. diaphragm, 10-32 mtg thd

  • Measurement Range: 5000 psi (34475 kPa)
  • Sensitivity: (±15%)1.0 mV/psi (0.145 mV/kPa)
  • Low Frequency Response: (-5%)0.5 Hz
  • Resonant Frequency: >=250 kHz (>=250 kHz)
  • Electrical Connector: 5-44 Coaxial
  • Weight: 0.055 oz (1.56 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ±5V output) 5000 psi 34475 kPa
Sensitivity (±15 %) 1.0 mV/psi 0.145 mV/kPa
Maximum Pressure 7500 psi 51700 kPa
Resolution 0.1 psi 0.69 kPa [2]
Resonant Frequency ≥250 kHz ≥250 kHz
Rise Time ≤2 µ sec ≤2 µ sec
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤2 % FS ≤2 % FS [1]
Environmental
Acceleration Sensitivity 0.04 psi/g 0.028 kPa/(m/s²) [2]
Temperature Range (Operating) -100 to +250 °F -73 to +121 °C
Temperature Coefficient of Sensitivity ≤0.09 %/°F ≤0.162 %/°C
Maximum Flash Temperature 3000 °F 1649 °C
Maximum Vibration 1000 g pk 9800 m/s² pk
Maximum Shock 5000 g pk 49000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥1.0 sec ≥1.0 sec
Excitation Voltage 22 to 30 VDC 22 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material Stainless Steel Stainless Steel
Diaphragm 17-4 Stainless Steel 17-4 Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 5-44 Coaxial 5-44 Coaxial
Weight 0.055 oz 1.56 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
018C10 Miniature, lightweight, black coaxial cable, vinyl insulation jacket, 10-ft, 5-44 plug to BNC plug 1
040A37 Hex nut driver, 5/32" (for series 105C) 1
065A10 Seal ring, 0.138" OD x 0.101" ID x 0.022" thk, brass (for Model 105C) 3
065A38 Seal sleeve, 0.138" OD x 0.101" ID x 0.105" thk, brass (for Model 105A) 3
