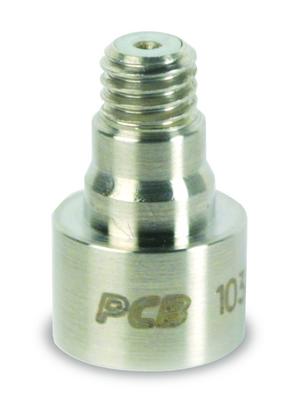

ACOUSTIC ICP PRESSURE SENSOR

Model 103B02

Add to Quote
  • CE
  • IP

Acoustic ICP® pressure sensor, 3 psi, 1500 mV/psi, 10-32 top conn., accel. comp.

  • Measurement Range: 3.00 psi (180.3 dB)
  • Sensitivity: (±15%)1500 mV/psi (217.5 mV/kPa)
  • Low Frequency Response: (-5%)5 Hz
  • Resonant Frequency: >=13 kHz (>=13 kHz)
  • Electrical Connector: 10-32 Coaxial Jack

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] For +10 volt output, minimum 24 VDC supply voltage required. Negative 10 volt output may be limited by output bias.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range 3.00 psi 180.3 dB
Useful Overrange 6.00 psi 186.3 dB [3]
Sensitivity (±15 %) 1500 mV/psi 217.5 mV/kPa
Maximum Pressure 250 psi 1724 kPa
Resolution 0.02 mpsi 77 dB [2]
Resonant Frequency ≥13 kHz ≥13 kHz
Rise Time ≤25 µ sec ≤25 µ sec
Low Frequency Response (-5 %) 5 Hz 5 Hz
Non-Linearity ≤2.0 % FS ≤2.0 % FS [1]
Environmental
Acceleration Sensitivity 0.0005 psi/g 0.0035 kPa/(m/s²) [2]
Temperature Range (Operating) -100 to 250 °F -73 to 121 °C
Temperature Coefficient of Sensitivity ≤0.2 %/°F ≤0.36 %/°C
Maximum Flash Temperature 1000 °F 538 °C
Maximum Shock 1000 g pk 9807 m/s² pk
Maximum Vibration 1000 g pk 9807 m/s² pk
Electrical
Discharge Time Constant 0.1 to 2.0 sec 0.1 to 2.0 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 7 to 13 VDC 7 to 13 VDC
Physical
Sensing Element Ceramic Ceramic
Housing Material Stainless Steel Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.11 oz 3.15 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
PCS-24 0
060A10 Clamp nut, 1/2-20-2A thd, 7/16" hex (for Model 103B01, 103B02, 103B11 and 103B12) 1
065A66 Adhesive mounting ring (for Series 103B) 3
160-0242-00 3

Optional Versions

(M) Metric Mount
Accessories:
Supplied 060A24 Clamp nut M14 x 1.25-6G thd 11 mm hex 17-4 SS material 1
