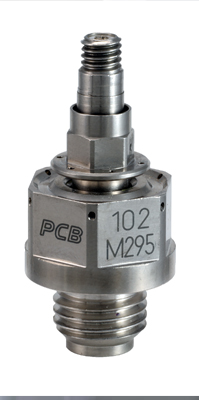

cryogenic icp® pressure sensor, 3500 psi, 1.5 mv/psi, 7/16-20 unf mtg thd. operating temperature range of -400 to +212f (-240 to + 100c).

ICP® Pressure Sensor

Model 102M295

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Cryogenic ICP® pressure sensor, 3500 psi, 1.5 mV/psi, 7/16-20 UNF mtg thd. Operating temperature range of -400 to +212F (-240 to + 100C).

  • Measurement Range: 3500 psi (24133 kPa)
  • Sensitivity: (±15%)1.5 mV/psi (0.217 mV/kPa)
  • Low Frequency Response: (-5%)0.5 Hz
  • Resonant Frequency: >=250 kHz (>=250 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.92 oz (26 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] -5V output may be limited by the output bias.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ±5V output) 3500 psi 24133 kPa [3]
Sensitivity (±15 %) 1.5 mV/psi 0.217 mV/kPa
Maximum Pressure (Total) 10000 psi 68950 kPa
Resolution 0.02 psi 0.14 kPa [2]
Resonant Frequency ≥250 kHz ≥250 kHz
Rise Time (Reflected) ≤2.0 µ sec ≤2.0 µ sec
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤1.0 % FS ≤1.0 % FS [1]
Environmental
Acceleration Sensitivity 0.002 psi/g 0.0014 kPa/(m/s²) [2]
Temperature Range (Operating) -400 to +212 °F -240 to +100 °C
Temperature Coefficient of Sensitivity ≤0.06 %/°F ≤0.108 %/°C
Maximum Flash Temperature 3000 °F 1649 °C
Maximum Vibration 2000 g pk 19600 m/s² pk
Maximum Shock 20000 g pk 196000 m/s² pk
Electrical
Discharge Time Constant (at room temp) ≥1.0 sec ≥1.0 sec
Excitation Voltage 15 to 30 VDC 15 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <500 Ohm <500 Ohm
Output Bias Voltage 3 to 8 VDC 3 to 8 VDC
Electrical Isolation >10 MOhm >10 MOhm
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material (probe) 304L/316L Stainless Steel 304L/316L Stainless Steel
Thread Adaptor Material Inconel 718 Inconel 718
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.92 oz 26 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
PCS-10AA 0
