model 3200 labmaster pro; interface w/pc via usb; w/4-channel data acquisition & signal conditioning, analog & digital io for drive motor control, and labmaster fastener testing software. pc not included

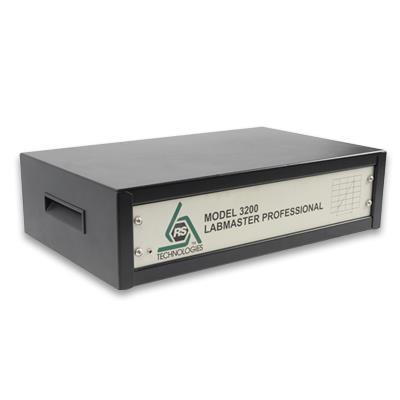

LabMaster Professional 3200 (data acquisition and motor control)

Model 083200-01000

  • IP

Model 3200 LabMaster Pro; interface w/PC via USB; w/4-channel data acquisition & signal conditioning, Analog & Digital IO for drive motor control, and LabMaster fastener testing software. PC not included

For more information on RS Technologies Fastener Testing products and applications, please visit:
https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-testing

To view the RS Technologies Fastener Testing Product Catalog, please visit:
https://www.pcb.com/Contentstore/MktgContent/LinkedDocuments/Force-Torque/RS_Fast_Testing_Lowres.pdf

    Specification Notes


    [1] 5 VDC excitation - optional.

    English: SI:
    Performance
    Resolution 24 bit 24 bit
    Environmental
    Temperature Range (operating ) 32 to 113 °F 0 to 45 °C
    Voltage 85 to 264 VAC 85 to 264 VAC
    Electrical
    Torque & Force Input Range (Channel 1 to Channel 4) 1 mV/V to 4 mV/V 1 mV/V to 4 mV/V
    Sensor Excitation 10 VDC 10 VDC [1]
    Angle Input Type quadrature A/B track quadrature A/B track
    Angle Input (max) 1 MHz 1 MHz
    Angle Power 5 VDC 5 VDC
    Bridge Resistance (minimum ) (Full Strain, Gage Bridge) 350 Ohm 350 Ohm
    Physical
    Size - Height 5.5 in 139.7 mm
    Size - Width 21 in 533.4 mm
    Size - Depth 13 in 330.2 mm
    Weight 16.9 lb 7.665 kg
    Mating Connector 15 pin D subminiature 15 pin D subminiature
    Mating I/O Connector 25 pin D subminiature 25 pin D subminiature
    Auxillary Connectors USB Type B USB Type B
    Mounting Desktop Cabinet Desktop Cabinet
    Power 40 watts 40 watts
    Frequency 47 to 63 Hz 47 to 63 Hz

    * All specifications are at room temperature unless otherwise specified.

    Accessories


    Optional
    089XXX-XXXXX 1
    099404-30563 Cable, LabMaster to 10-Pin Transducer, 10-feet Straight 1
    099404-30566 Cable, LabMaster to Thread Torque-Fastener Tension Load Cell, 10-feet Straight 1
    Supplied
    100-10227-60 1
    100-14923-70 Labmaster 3200 software CD 1
    100-14923-80 Labmaster 3200 drivers CD 1
    100-14924-00 LabMaster 3200 Manual Supplement CD 1
    Optional
    109XXX-XXXXX 1
    Supplied
    63120-003200 1
    73110-017250 1
