quick clip adhesive mounting base for 0.40/10.2mm cube accelerometers

Accessory for Vibration Division Product

Model 080A172

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

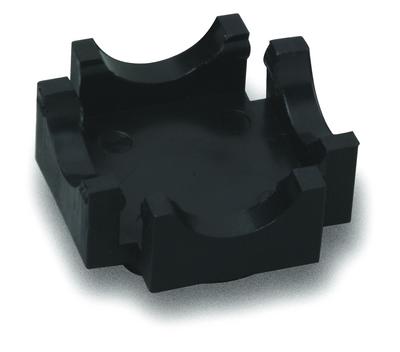

Quick clip adhesive mounting base for 0.40"/10.2mm cube accelerometers

  • Size: 0.55x0.55x0.25 in (14x14x6.4 mm)
  • Weight: 0.5 gm
  • Frequency Limit (±5%) - Grease Mount: 2 kHz Typical
  • Frequency Limit (±10%) - Grease Mount: 4 kHz Typical
  • Frequency Limit (±5%) - Dry Mount: 1 kHz Typical
  • Frequency Limit (±10%) - Dry Mount: 1.3 kHz Typical
  • Temperature Range (Continuous): -65 to +125°F (-54 to +52°C)
  • High Temperature Limit (Short Term Exposure): +175°F (+79°C)

  • Actual attainable frequency limits may be higher than specified, particularly for lower weight accelerometers, and may differ depending on axis of motion. An interface of silicone grease between clip and accelerometer aids in mechanical coupling to improve attainable frequency range.

      Specification Notes


      English: SI:

      * All specifications are at room temperature unless otherwise specified.
