hand torque wrench, 50 ft-lb (5.6 nm), 12-inch handle, 3/8-inch square drive, 4-pin pt receptacle

HAND TORQUE WRENCH

Model 027137-04051

Add to Quote
  • CE
  • IP

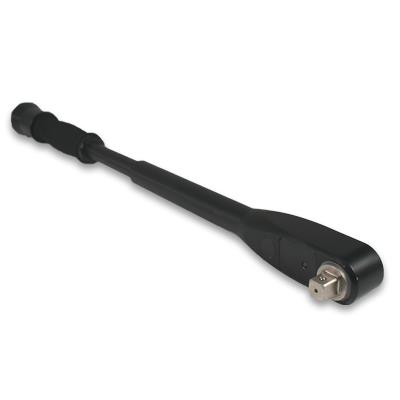

Hand Torque Wrench, 50 ft-lb (5.6 Nm), 12-inch Handle, 3/8-inch Square Drive, 4-Pin PT Receptacle

For more information on RS Technologies Fastener Assembly products and applications, please visit:
https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-assembly

To view the RS Technologies Assembly Product Catalog, please visit:
https://www.pcb.com/Contentstore/MktgContent/LinkedDocuments/Force-Torque/RS_Fast_Assemby_Lowres.pdf
  • Measurement Range: 50 lbf-ft (68 Nm)
  • Sensitivity: (output at rated capacity)2 mV/V

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] Matched for mV/V and shunt calibration.
[4] See Drawing 52102 for Complete Dimensions
[5] 2 mV/V with 43.575 kOhm precision resistor.
[4] See Drawing 52102 for Complete Dimensions
[6] See PCB Declaration of Conformance PS117 for details.

English: SI:
Performance
Measurement Range (Full Scale Capacity) 50 lbf-ft 68 Nm
Sensitivity (output at rated capacity ) (0.25%FS) 2 mV/V 2 mV/V [1]
Non-Linearity ≤0.25 % FS ≤0.25 % FS [2]
Hysteresis ≤0.25 % FS ≤0.25 % FS [2]
Interchangeabilty ≤0.30 % FS ≤0.30 % FS [3]
Overload Capacity 150 % F.S. 150 % F.S.
Drive Size 3/8 inch Square 3/8 inch Square [4]
Environmental
Temperature Range (Operating) 0 to +200 °F -18 to +93 °C
Temperature Range (Compensated) +70 to +150 °F +21 to +66 °C
Temperature Effect on Output (Maximum) ±0.01 %RO/°F ±0.018 %RO/°C
Temperature Effect on Zero Balance (Maximum) ±0.01 %FS/°F ±0.018 %FS/°C
Electrical
Bridge Resistance 350 Ohm 350 Ohm
Excitation Voltage (Recommended) 10 VDC or VAC rms 10 VDC or VAC rms
Zero Balance ≤2 % FS ≤2 % FS
Shunt Calibration 2 mV/V 2 mV/V [5]
Output Polarity cw+ cw+
Isolation Resistance ≥1G Ohm ≥1G Ohm
Physical
Size - Length 12.11 in 307.6 mm [4]
Weight 12.8 oz 363 gm
Mating Connector PT06A-8-4S PT06A-8-4S
Connector DT02H-8-4P DT02H-8-4P
Color Code Green Green
Socket Retaining Type Ball/Spring Ball/Spring

* All specifications are at room temperature unless otherwise specified.

Accessories
Optional
097000-34445 Cable, Coiled, 3-ft, RS Instrument to 10-pin Transducers 1
4242R-000630 1
Supplied
7122R-04352A Precision Cal Resistor 43.575K Ohm 1
Optional
080922-01000 Model 922 Portable Digital Peak Meter for measuring torque, torque and angle, or load measurement. Click-wrench calc feature and multi-limit sets. Complete with battery charger, data transfer software, and instruction manual 0
080962-01000 Model 962 Portable Transient Recorder, complete with FastPlot2 data transfer software, 8GB USB Memory Drive, USB cable for data upload/download, battery charger, and carrying case 0
