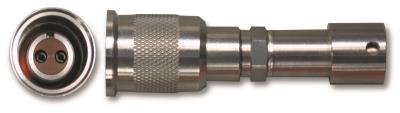

2-socket high temperature connector (mil-c-5015 compatible)

ER- 2 SOCKET MIL-MS3106 TYPE HIGH TEMPERATURE

Model ER

  • IP

2-socket high temperature connector (MIL-C-5015 compatible)

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -65 to +500 °F (-55 to +260 °C)

Specification Notes

English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief None None
Environmental
Temperature Range -65 to +500 °F -55 to +260 °C
Physical
ROHS Compliant Yes Yes
Size - OD 0.77 in 19.56 mm
Size - Length 2.26 in 57.40 mm
Weight 1.24 oz 35.33 gm

* All specifications are at room temperature unless otherwise specified.
