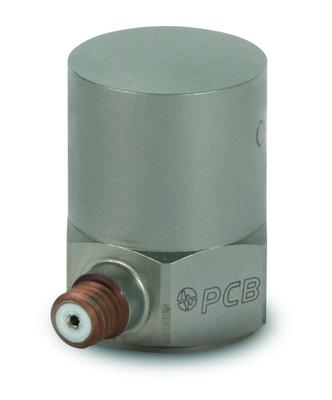

Charge Output Accelerometer

Model 357B21

High temp., ceramic shear, charge output accel., 30 pC/g, 6k Hz, 10-32 side conn.(-95 F to +500 F)

Sensitivity: (±15%)30 pC/g (3.1 pC/(m/s²))
Measurement Range: ±1500 g pk (±14700 m/s² pk)
Frequency Range: (+5%)6000 Hz
Weight: 0.73 oz (21 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.

	English:	SI:
Performance
Sensitivity (±15 %)	30 pC/g	3.1 pC/(m/s²)
Measurement Range	±1500 g pk	±14700 m/s² pk
Frequency Range (+5 %)	6000 Hz	6000 Hz	[2]
Frequency Range (+10 %)	7500 Hz	7500 Hz	[2]
Frequency Range (+3 dB)	8500 Hz	8500 Hz	[2]
Resonant Frequency	≥23 kHz	≥23 kHz
Non-Linearity (600 g, 5890 m/s²)	≤1 %	≤1 %	[1]
Non-Linearity	≤3 %	≤3 %	[1]
Transverse Sensitivity	≤5 %	≤5 %
Environmental
Overload Limit (Shock)	±6000 g pk	±58860 m/s² pk
Temperature Range	-95 to +500 °F	-71 to +260 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[3]
Base Strain Sensitivity	0.0006 g/µε	0.006 (m/s²)/µε	[3]
Electrical
Capacitance	930 pF	930 pF	[3]
Insulation Resistance (at 500°F)	≥100000000 Ohm	≥100000000 Ohm	[3]
Insulation Resistance (at 70° F [21°C])	≥1000000000000 Ohm	≥1000000000000 Ohm
Output Polarity	Negative	Negative
Physical
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Hex	5/8 in	5/8 in
Size - Height	0.85 in	21.6 mm
Weight	0.73 oz	21 gm	[3]
Electrical Connector	10-32 Coaxial Jack	10-32 Coaxial Jack
Electrical Connection Position	Side	Side
Mounting Thread	10-32 Female	10-32 Female

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
081B05	Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder	1
ACS-1	Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable	1
M081B05	Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu	1

Optional Versions

(J) Ground Isolated

	English	SI
Frequency Range	4000 Hz
Size - Height	0.90 in	22.9 mm
Electrical Isolation	100000000 Ohm
Frequency Range	5000 Hz
Resonant Frequency	≥17 kHz
Size - Hex	0.625 in	15.9 mm
