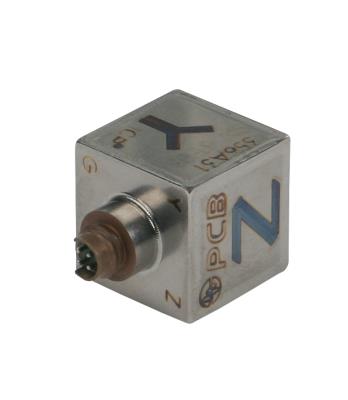

Accelerometer, ICP®, Triaxial

Model 356A32

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Lead Time for 1-10 is 6 Wks. Lead Time for 11-20 is 8 Wks.

Platinum Stock Products; Triaxial, mini (5 gm) high sensitivity, ICP® accel., 100 mV/g, 1 Hz to 4k Hz, titanium hsg, 10 ft mating cable supplied

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±491 m/s² pk)
Electrical Connector: 8-36 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±10 %)	100 mV/g	10.2 mV/(m/s²)
Measurement Range	±50 g pk	±491 m/s² pk
Frequency Range (±5 %)	1.0 to 4000 Hz	1.0 to 4000 Hz
Frequency Range (±10 %)	0.7 to 5000 Hz	0.7 to 5000 Hz
Resonant Frequency	≥25 kHz	≥25 kHz
Broadband Resolution (1)	0.0003 g rms	0.003 m/s² rms	[2]
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤5 %	≤5 %
Environmental
Overload Limit (Shock)	±5000 g pk	±49050 m/s² pk
Temperature Range (Operating)	-65 to +250 °F	-54 to +121 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[2]
Base Strain Sensitivity	0.001 g/µε	0.01 (m/s²)/µε	[2]
Electrical
Excitation Voltage	24 to 30 VDC	24 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤200 Ohm	≤200 Ohm
Output Bias Voltage	7 to 16 VDC	7 to 16 VDC
Discharge Time Constant	0.4 to 1.5 sec	0.4 to 1.5 sec
Settling Time (within 10% of bias)	<5 sec	<5 sec
Spectral Noise (1 Hz)	95 µg/√Hz	932 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	20 µg/√Hz	196 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	6 µg/√Hz	58.9 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	3 µg/√Hz	29.4 (µm/sec²)/√Hz	[2]
Spectral Noise (10 kHz)	2 µg/√Hz	19.6 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Height	0.45 in	11.4 mm
Size - Length	0.45 in	11.4 mm
Size - Width	0.45 in	11.4 mm
Weight	0.19 oz	5.4 gm	[2]
Electrical Connector	8-36 4-Pin	8-36 4-Pin
Electrical Connection Position	Side	Side
Mounting Thread	5-40 Female	5-40 Female
Mounting Torque	4 to 5 in-lb	45 to 55 N-cm

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
034K10	4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z)	1
080A	Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish	1
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
081A27	Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu	1
081A90	Mounting stud, 10-32 to 5-40	1
ACS-1T	Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable	1
M081A27	Metric mtg stud, 5-40 to M3 x 0.50 long	1
