MicroPower Embeddable ICP® Accelerometers

Ultra-low power embeddable accelerometers for battery-powered IoT product integration

Achieve long-term, continuous operation in wireless condition monitoring systems with fewer battery replacements. With IMI Sensors' MicroPower embeddable accelerometers, high-performance ICP® sensing technology combines with ultra-low power consumption in a lightweight flexible mounting package. The result is simple installation, unparalleled accuracy, and months to years of extended battery life for high-volume OEM applications.

Model 66203RPZ1
Model 66213RPZ1
Automation.com article
Datasheet

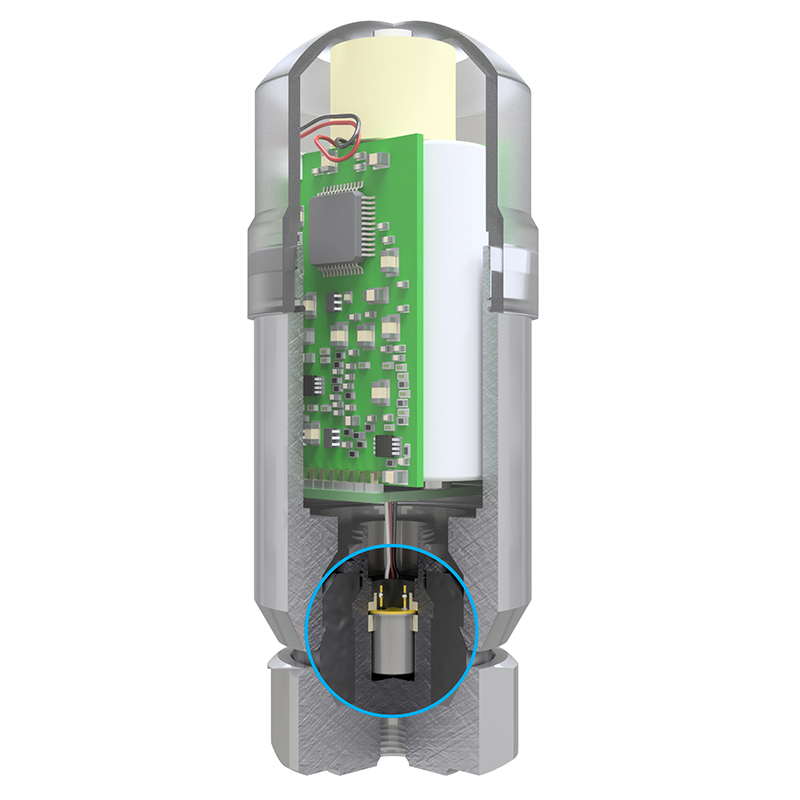

MicroPower Pellet

Click image to view larger version

MicroPower highlights

Embeddable accelerometers from IMI offer complete flexibility in terms of mounting within your device. Choose between standard products or customizable base designs to make product integration a snap. Due to their low-profile design and mounting flexibility, our embeddable accelerometers achieve tight coupling between the sensor and the object being measured, minimizing unwanted vibration for superior signal integrity.

  • Robust piezoelectric sensing element for wide frequency response of 1—12,500 Hz (± 3 dB)
  • Low power consumption: 180 µW
  • Low current draw: 60 µA
  • Fast power up and settling time: 350 µs
Pellets

Choose IMI Sensors for your vibration monitoring needs

IMI Sensors has vibration monitoring solutions for your toughest industrial applications. We have thousands of sensors in stock, ready to ship, with lifetime warranty. Contact us or request a quote today.

CONTACT US

Compare selected models ()
[ clear compare ]
Mouse Over Image for Product Description.
Model Number

Model:66203RPZ1

  • Sensitivity: (±20%)50 mV/g
  • Sensitivity: (±20%)5.1 mV/(m/s²)
  • Frequency Range: (±3dB)1 to 12.5k Hz
  • Frequency Range: (±3dB)1 to 12.5k Hz
  • Sensing Element: Ceramic
  • Sensing Element: Ceramic
  • Measurement Range: 25 g
  • Measurement Range: 245 m/s²
  • Weight: 0.1 oz
  • Weight: 3 gm
$112.00 USD
(Pricing valid in US only)
Add to Cart

Add this product to my product comparison
Model Number

Model:66213RPZ1

  • Sensitivity: (±20%)100 mV/g
  • Sensitivity: (±20%)10.2 mV/(m/s²)
  • Frequency Range: (±3dB)2 to 12.5k Hz
  • Frequency Range: (±3dB)2 to 12.5k Hz
  • Sensing Element: Ceramic
  • Sensing Element: Ceramic
  • Measurement Range: 12.5 g
  • Measurement Range: 123 m/s²
  • Weight: 0.1 oz
  • Weight: 3 gm
$112.00 USD
(Pricing valid in US only)
Add to Cart

Add this product to my product comparison
