triple splice assembly with (3) 1-ft coaxial cables each with a nim-camac coaxial plug (ne)

Cable Connector

Model PC

Add to Quote
  • IP

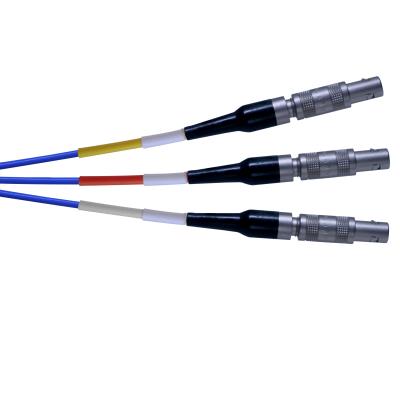

Triple splice assembly with (3) 1-ft coaxial cables each with a NIM-CAMAC coaxial plug (NE)

  • Connector Style: LEMO
  • Connector Style: Triple Splice
  • Connection Type: Plug (male pin)
  • Temperature Range: -67 to +300 °F (-55 to +149 °C)

Specification Notes

[1] Typical value.

English: SI:
Performance
Connector Style LEMO LEMO
Connector Style Triple Splice Triple Splice
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Push On Push On
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to +300 °F -55 to +149 °C
Electrical
Impedance 50 Ohm 50 Ohm
Insulation Resistance >10 Tohm >10 Tohm
Physical
Electrical Connections (Shell) Ground Ground
Electrical Connections (Center Pin) Signal/Power Signal/Power
Housing Material Brass Brass
Finish Nickel Plated Nickel Plated
Size - Length 12 in 305 mm [1]
Weight 0.87 oz 24.6 g [1]

* All specifications are at room temperature unless otherwise specified.
