low outgassing, triaxial, thru-hole mtg, ceramic shear, miniature icp® accel, 10 mv/g, 2 to 8k hz, ground isolated, integral cable with fkm heat shrink, 034m22 supplied

Triaxial ICP® Accelerometer

Model 354M56

Add to Quote
  • CE
  • IP

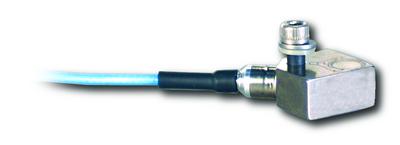

Low Outgassing, Triaxial, thru-hole mtg, ceramic shear, miniature ICP® accel, 10 mV/g, 2 to 8k Hz, ground isolated, integral cable with FKM heat shrink, 034M22 supplied

This accelerometer features low out-gassing construction that is ideal for use in thermal vacuum chambers for environmental testing.
  • Sensitivity: (±15%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 ) 2 to 8000 Hz 2 to 8000 Hz
Resonant Frequency ≥40 kHz ≥40 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.3 to 1.0 sec 0.3 to 1.0 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 1000 µg/√Hz 9810 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 300 µg/√Hz 2943 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 80 µg/√Hz 785 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 25 µg/√Hz 308 (µm/sec2)/√Hz [2]
Electrical Isolation >100000000 Ohm >100000000 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.30 in 7.6 mm
Size - Length 0.55 in 14.0 mm
Size - Width 0.55 in 14.0 mm
Weight (without cable) 0.18 oz 5.0 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Cable Length 5 ft 1.5 m
Cable Type 034 4-cond Shielded 034 4-cond Shielded
Mounting Through Hole Through Hole
Mounting Torque 4 to 5 in-lb 45 to 55 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
034M22 Low Outgassing, 4-conductor, shielded cable, 20-ft, 4-pin plug to (3) BNC plugs, with FKM heat shrink 1
081M216 5-40 socket head cap screw with FKM heat shrink insulation material 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
