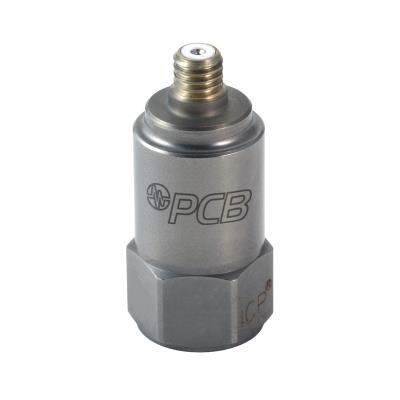

platinum stock products; general purpose, quartz shear icp® accel., 10 mv/g, 1 to 7k hz, 10-32 top conn.

Accelerometer, ICP®

Model 353B04

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Lead Time for 1-10 is 4 Wks. Lead Time for 11-20 is 5 Wks.

Platinum Stock Products; General purpose, quartz shear ICP® accel., 10 mV/g, 1 to 7k Hz, 10-32 top conn.

Sensitivity: (±5%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4905 m/s² pk)
Broadband Resolution: 0.003 g rms (0.03 m/s² rms)
Frequency Range: (±5%)1 to 7000 Hz
Sensing Element: Quartz
Weight: 0.38 oz (10.5 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] B and Q options supplied with a sensitivity tolerance of ± 10 %.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±5 %)	10 mV/g	1.02 mV/(m/s²)	[4]
Measurement Range	±500 g pk	±4905 m/s² pk
Frequency Range (±5 %)	1 to 7000 Hz	1 to 7000 Hz
Frequency Range (±10 %)	0.7 to 11000 Hz	0.7 to 11000 Hz
Frequency Range (±3 dB)	0.35 to 20000 Hz	0.35 to 20000 Hz
Resonant Frequency	≥38 kHz	≥38 kHz
Broadband Resolution (1)	0.003 g rms	0.03 m/s² rms	[2]
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤5 %	≤5 %	[3]
Environmental
Overload Limit (Shock)	±10000 g pk	±98100 m/s² pk
Temperature Range (Operating)	-65 to +250 °F	-54 to +121 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[2]
Base Strain Sensitivity	≤0.0005 g/µε	≤0.005 (m/s²)/µε	[2]
Electrical
Excitation Voltage	18 to 30 VDC	18 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤100 Ohm	≤100 Ohm
Output Bias Voltage	8 to 12 VDC	8 to 12 VDC
Discharge Time Constant	0.5 to 2.6 sec	0.5 to 2.6 sec
Settling Time (within 10% of bias)	<5 sec	<5 sec
Spectral Noise (1 Hz)	2800 µg/√Hz	27468 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	700 µg/√Hz	6867 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	180 µg/√Hz	1766 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	64 µg/√Hz	628 (µm/sec²)/√Hz	[2]
Physical
Size - Height	1.14 in	29.0 mm
Size - Hex	0.50 in	12.7 mm
Weight	0.38 oz	10.5 gm	[2]
Sensing Element	Quartz	Quartz
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Welded Hermetic	Welded Hermetic
Electrical Connector	10-32 Coaxial Jack	10-32 Coaxial Jack
Electrical Connection Position	Top	Top
Mounting Thread	10-32 Female	10-32 Female

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A	Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish	1
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
081B05	Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder	1
ACS-1	Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable	1
M081B05	Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu	1

Optional Versions

(B) Low bias electronics

	English	SI
Output Bias Voltage	4.5 to 7.5 VDC
Excitation Voltage	12 to 30 VDC
Constant Current Excitation	1 to 20 mA
Measurement Range	300 g pk	2943 m/s² pk

(J) Ground Isolated

	English	SI
Frequency Range	1 to 5000 Hz
Frequency Range	0.7 to 9000 Hz
Resonant Frequency	22 kHz
Electrical Isolation	≥100000000 Ohm
Size - Hex	0.50 in	12.7 mm
Size - Height	1.19 in	30.2 mm
